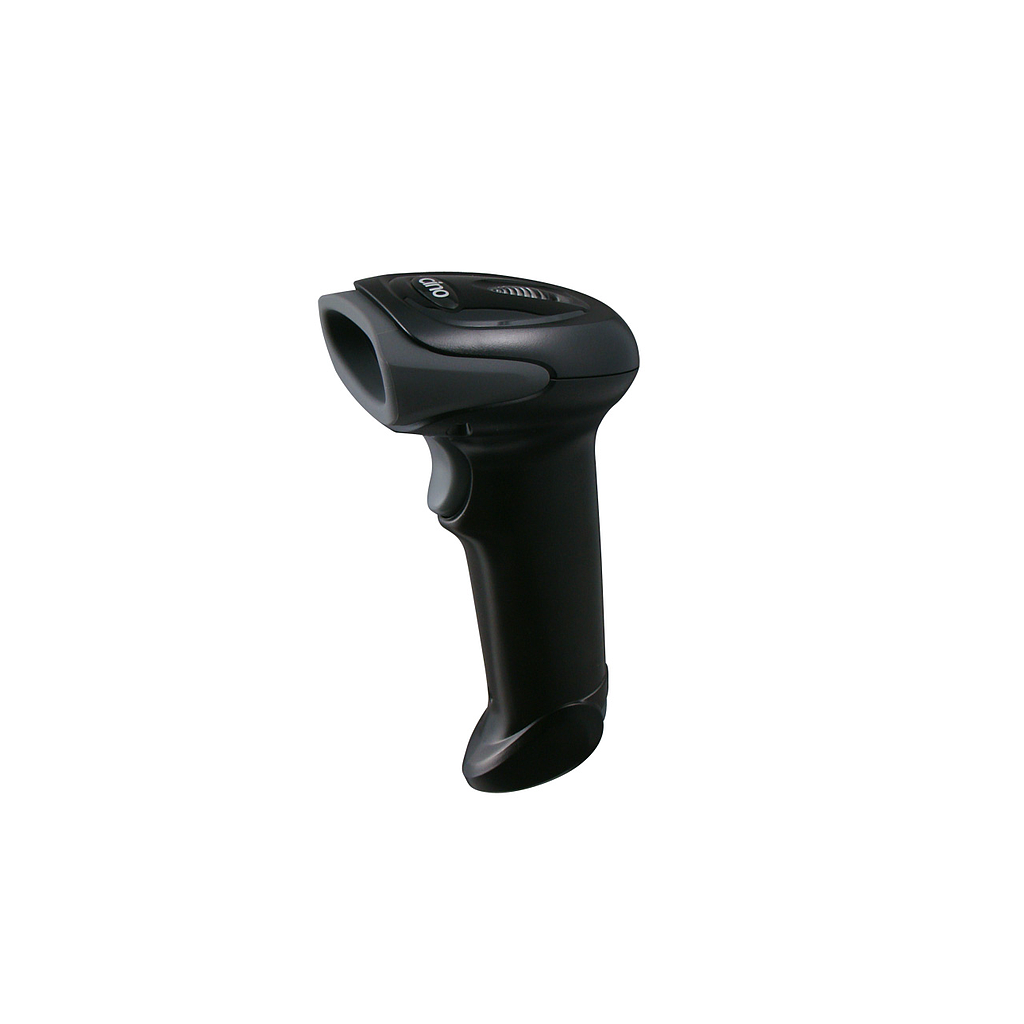

Cino FUZZYSCAN A670 2Dハンドヘルドイメージャー

Image Sensor: 1120 x 768 Pixels

Print Contrast: 18% minimum reflectance difference

Light Source: Warm white LED

Imager Field of View: 36.5˚H x 24.9˚V

Minimum Resolution:

3.0 mil Code 39

5.0 mil DM

Reading Range: 13 mil (0.33mm) UPC/EAN up to 17.1”

Roll, Pitch, Skew: Roll: 360˚; Pitch: ± 75˚; Skew: ± 65˚

Motion Tolerance: Up to 370 cm/s (145 in/s)

Configuration Setup:

FuzzyScan Barcode commands

FuzzyScan iCode

FuzzyScan PowerTool

Data Processing: DataWizard Premium

Electrical Characteristics

Operating Voltage: 5VDC ± 10%

Operating Current:

Operating : Typical 395 mA @5VDC

Standby : Typical 220 mA @5VDC

Physical Characteristics

Dimensions:

97.0 mm (L) x 65.0 mm (W) x 156.0 mm (D)

3.81 in. (L) x 2.55 in. (W) x 6.14 in. (D)

Weight: 130g (cable excluded)

Color: Classic Black, Ivory White

Host Interfaces:

USB HID (USB Keyboard)

USB VCOM (USB COM port emulation)

USB OEM POS

Standard RS232

User Interfaces:

3 LEDs for power, good read and status indications

Programmable beeper

Optional vibrator

Supported Symbologies

1D Linear Codes:

Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey

2D Codes: PDF417, Micro PDF417, Composite Codes, DataMatrix, MaxiCode, QR Code, MicroQR, Aztec, Codablock F, Code 16K, Code 49, Chinese Sensible (Han Xin) Code

Postal barcodes: Australian Post, US Planet, US POSTNET, Japan Post, Posi LAPA 4 State Code, German Post, British Post, Intelligent Mail, Korean Post, Dutch KIX Post, China Post

User Environment

Drop Specifications: Withstands multiple drops from 1.8m (6.0ft) to concrete

Environmental Sealing: IP52

Operating Temperature: -10˚C to 50˚C (14˚F to 122˚F)

Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)

Humidity: 0% to 95% relative humidity, non-condensing

Ambient Light Immunity: 0 ~ 106,000 lux

ESD Protection: Functional after 15KV discharge

Accessories

Cables:

RS232 Serial Cable

USB-A Cable

USB-C Cable

USB Power Cable

Others

US100 SmartStand

Universal Holder

Power Supply Unit (5VDC, 2A outlet)
