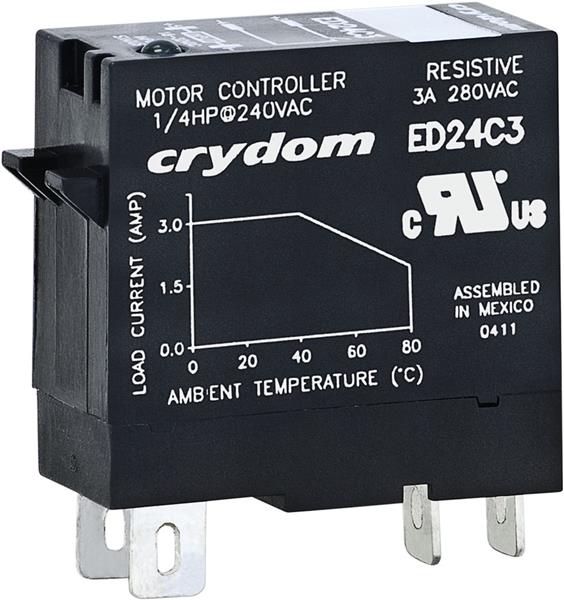

Sensata Technologies - Crydom ED24C3 インジケータープラグイン 280VAC 3A 18-32VDC CNT ZC

Width: 12.7 mm

Height: 27.9 mm

Length: 29 mm

Output Type: SCR

Unit Weight: 18.600 g

Contact Form: SPST (1 Form A)

Input Current: 3.8 mA to 6.9 mA

Mounting Style: Socket Mount

Termination Style: Quick Connect

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 3 A

Load Voltage Rating: 24 VAC to 280 VAC

Control Voltage Range: 18 VDC to 32 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C
