Specifications
Color: White
Weight: About 135kg
Box dimension: 600(L)*550(W)*500(H)mm
Operating dimension: 400(L)*350(W)*300(H)mm
Electrical Specifications
Operating voltage: AC 220V, 50/60Hz
Rated power: 15W
Pneumatic pressure: >5kg/cm2
Shielding and Soundproofing Performance
RF shielding performance: 0.8~4GHz>70dB, 4~6GHz>60dB (Without I/O interface)
Audio isolation performance: 100~300Hz>38dB, Above 300Hz>48dB (1/3 octave)
Noise floor: 30dBA, exterior noise≤80dBA (No shock or vibration)

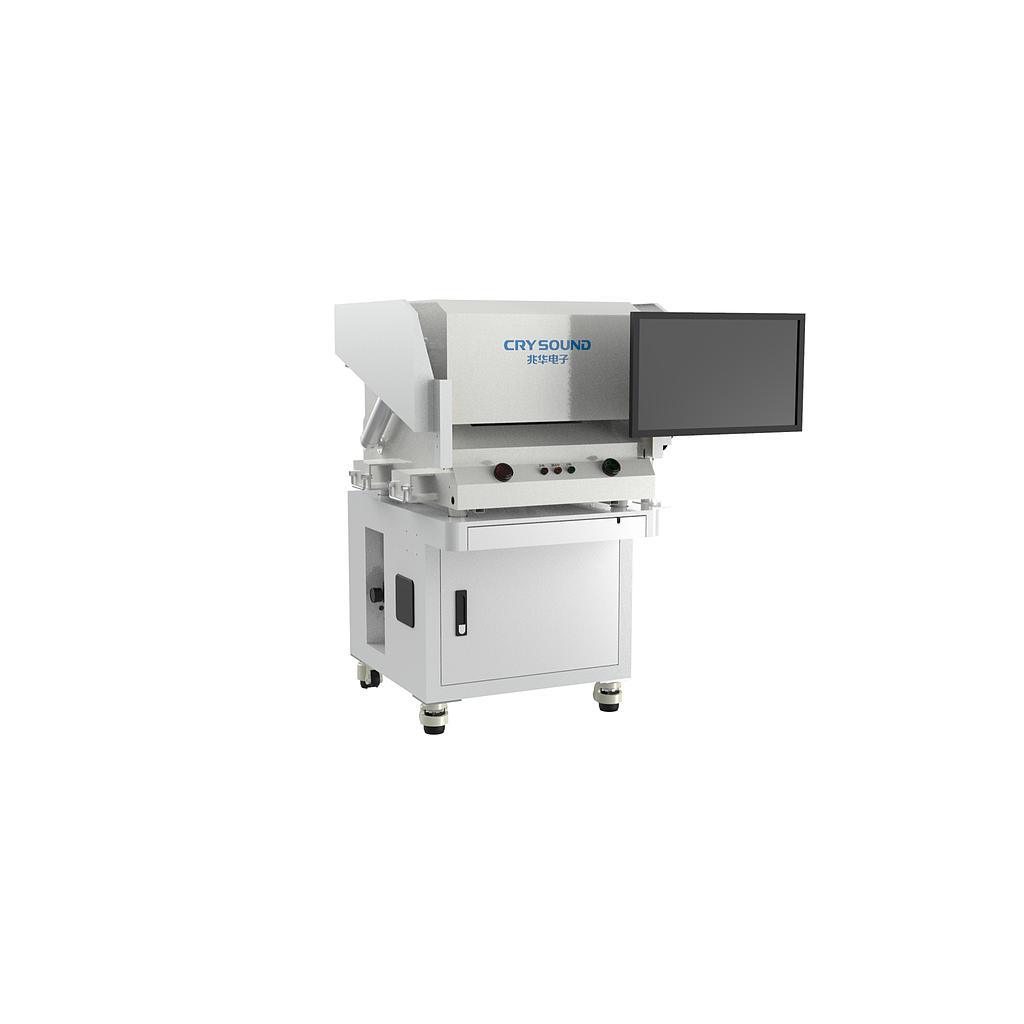

The CRY723D Pneumatic Acoustic Test Chamber is primarily used to test the power, sensitivity, and other electrical performance parameters of wireless electronic and communication products, such as wireless servers and walkie-talkies. This test chamber can be utilized with comprehensive testers, vector network analyzers, signal sources, and channel emulators to conduct essential testing. It is capable of connecting to wireless devices via Bluetooth, WiFi, GSM, WCDMA, RFID, or GPS remote controllers.
