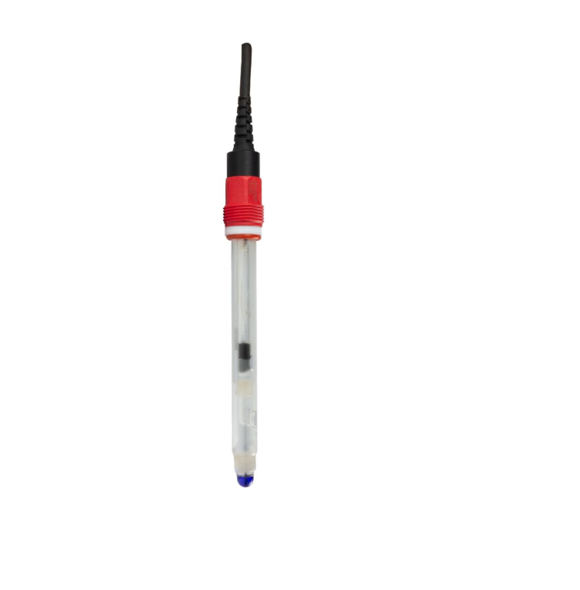

Daruifuno ASR100E-V0-YS ORP センサー (±2000mV, 5m, for APX1, APX2 series)

ORP Measuring Range: ±2000mV

Indicator Electrode: Platinum

Reference System: Ag/Ag Cl reference electrode, double salt bridge, KCl gel

Electrode Material: Glass annular ceramichole

Working Pressure:

- Mediumand low temp environment: max. 0~4bar

- High temp environment:0~2bar

WorkingTemp:

- Mediumand low temp environment: 0~80℃, continuouslyworking

- High temp environment:80~100℃, continuously working＜ 30 mins

SampleFlow Rate: 0.5   m/s   ≥   flow velocity≥   0.001 m/s

Zero (E0):±20mV

SLOP%:＞95%

Temperature Unit: Standard without PT100, PT1000, NTC10K (can be customized)

Dimension Standard: diameter 12mm/Length 120mm (customized)

Wire Lead: Integral wire with thread

Without temperature compensation

Installation Dimension: Anti-twist cap or PG13.5

Electric Wire: 5m
