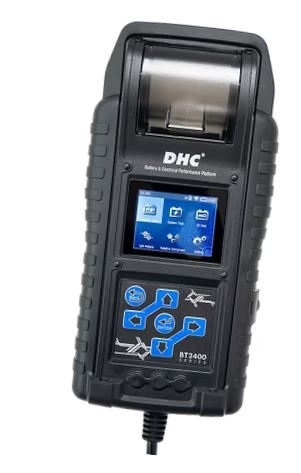

DHC BT2400 PRO Battery and Electrical System Tester (25 ~ 3,000 CCA(SAE))

Application:

6V and 12V battery tests

12V start-stop battery tests

12V and 24V cranking/charging system tests

Internal resistance tests

Supported Battery Types: Flooded, AGM Flat Plate, AGM Spiral, EFB, VRLA/GEL

Supported Battery Ratings: CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA

Operating Range: 25 to 3,000 CCA(SAE)

Voltage Range: 1V to 32V

Sensor Array:

Barcode Scanner

Temperature Sensor

Wireless Connection: Wi-Fi 802.11 b/g/n

Wired Connection: USB Type-A

Firmware Update: Yes (via Wi-Fi)

DHC Cloud Services (mybatteryexpert.com): Supported (powered by AWS)

PC Software: –

Test Code and Test Counter: Yes (supports recall and print of test results of the last 7 days)

Printer: 2-inch thermal printer

Display: Coloured TFT-LCD (240×320)

Input Device: 6-key keypad (up, down, left, right, enter, back)

Clamp-Cable Set Length: 1.8 metres (approx. 5.9 feet)

Detachable Cable: Yes

Internal Battery Support:

AA Alkaline/NiMH batteries

18650 Li-ion batteries

Voltage Probe: Supported (sold separately)

Amp Clamp: Supported (sold separately)

Dimensions (L × W × H): 285 × 140 × 75 mm (approx. 11.2 × 5.5 × 3 inches)

Operating Languages: English, French, Spanish, German, Italian, Portuguese, Polish, Dutch, Turkish (more languages possible)

The BT2400 PRO combines decades of battery testing know-how into one dependable and flexible package for professionals and enables tests to be conducted with speed, convenience, and accuracy.

Features:

Battery, Cranking, and Charging System Tester

6V, 12V, and 12V Start-Stop Battery Test

12V & 24V Cranking/Charging System Test and IR Test

TFT-LCD Display with Intuitive Graphical User Interface

Wired & Wireless Connectivity via WiFi or USB Type-A Port

Upload test results automatically through Wi-Fi.

Store and manage data through our cloud interface.

Integrated 1D/2D Barcode Scanner

Flexible Integrated Battery Type: AA or 18650 Li-Ion batteries

Thermal Sensor for Battery Temperature Detection and Compensation.

Built-in 2” Thermal Printer & Customizable Facility Information

Detachable/Replaceable 5.9’ Cable

Built-in Clamp and Cable Diagnostic Capability

Strong and Durable Heavy-Duty Case Design

Test Code Decoder for Decoding and Saving Test Records

Recall and Print Last 7 Days Test Results

12-Month Warranty

User Manual
