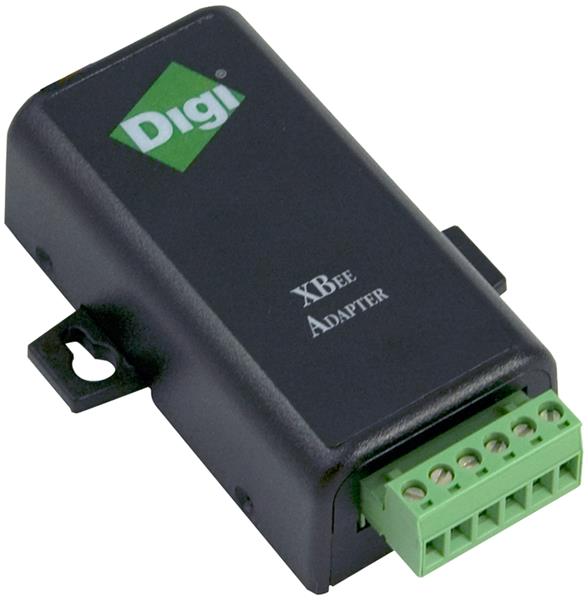

DIGI XA-Z14-CS3PH-A Zigbeeモジュール Xbee RS-485アダプター 外部RPSMAアンテナ付き

Range: 300 ft, 2 mile

Data Rate: 250 kb/s

Frequency: 2.4 GHz

Dimensions: 91.4 mm x 48.2 mm x 30.4 mm

Sensitivity: - 102 dBm

Unit Weight: 64 g

Output Power: 63 mW

Interface Type: RS-485

Supply Voltage - Max: 30 V

Supply Voltage - Min: 9 V

Antenna Connector Type: RPSMA

Operating Supply Voltage: 9 V to 30 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4, Zigbee
