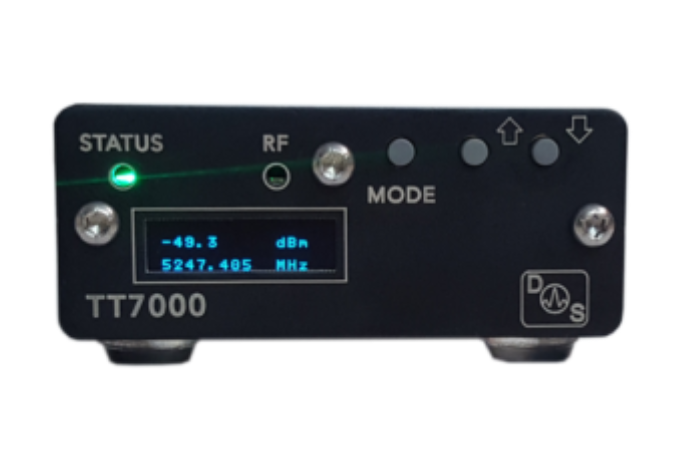

DS INSTRUMENTS TT7000 RF GENERATOR WITH POWER METER (50MHz - 8GHz)

Power meter frequency range: 50MHz – 8GHz

Power meter typical dynamic range: 50dBm (-45dBm to +5dBm)

Power measurement speed: 25mS min (40Hz)

Power meter Resolution: 0.05dB

Power meter absolute accuracy: ±0.75dB typical

Frequency counter range: 100MHz – 7GHz

Frequency counter sensitivity: -25dBm typical

Frequency counter resolution: 1KHz

Frequency counter accuracy: ±3KHz

Frequency counter speed: 1 Second

Signal generator range: 300 – 9600MHz

Signal generator bands: 300-4800, 4800-9600MHz

Band 1 power level: -15 to +15dBm in 0.25dB steps

Band 2 power level: +12dBm typical

Signal generator step size: 10Hz

Internal reference stability: ±280 PPB
