Eijkelkamp 04.17 Split tube sampler set - surface sampling, conical screw (40 cm, 50 mm, 35 kg)

Applications:

Soil profile description and classification

Soil sampling above groundwater table

Environmental soil research

Undisturbed sampling

Soil texture research

Root zone sampling

Specification

Connection: Screw thread

Maximum root thickness: 15 mm

Maximum sample depth: 40 cm

Product material: Stainless steel, iron, other material

Sample diameter: 50 mm

Sample length: 40 cm

Sample specification: Undisturbed

Sample stored in: Container

Sample volume: 785 ml

Sampler position: Vertical

Package size: 126 x 65 x 50 cm

Weight: 35 kg

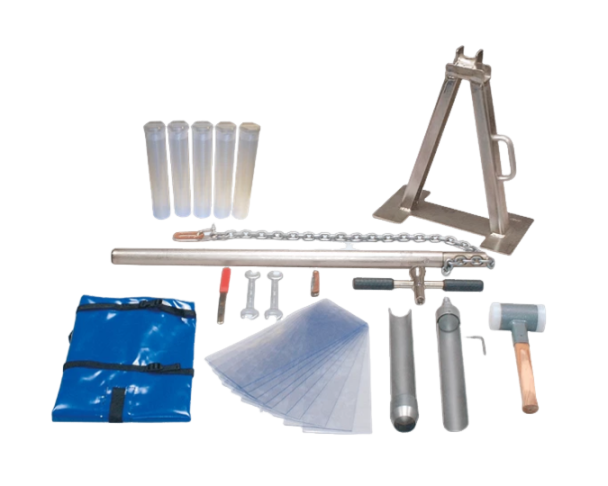

Set contains:

Split tube sampler

Sample foils (10 pieces)

Sample transport containers

Hammering head

Hammer with nylon heads, impact absorbing design

Spatula

Beam with chain & support

Cleaning material

Strong carrying bag

Description:

The sampler consists of two stainless steel tubes halves with a working length of 40 centimetres. Undisturbed sampling often poses a problem when removing the sample from the sampling tube, but with this type of sampler, both parts can be easily separated. The sample is located (loose or in a liner) in the detachable tube. The split tube sampler can easily be opened for immediate research or transport of the sample to the laboratory.

Depending on the nature of the research, it is recommended (in order to obtain representative samples) to decontaminate the apparatus after every sampling. Thanks to the conical screw thread connection, this sampler is suitable for hammering.

Features:

The split tube sampler set is an apparatus for rapid undisturbed sampling at the surface. This sampler is very suitable for research on root systems, fertilising and soil biology.

Larger sample

Ideal for surface sampling

Easy to open split tube system

Stainless steel body

Extraction by beam with chain & support

Manual
