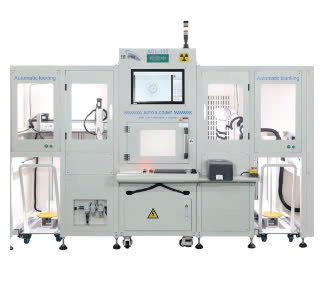

X–Ray Tube
Tube Voltage: 80KV
Tube Current: 150uA
Detector
Imaging Area: 427mm*427mm
Pixel Size: about 48um-75um
Pixel Matrix: 3072*3072 Pixels
- Check Item and Size
Maximum Size of Tray: 380mm
Minimum Size of Tray: 180mm
Maximum Plate Thickness: 85mm
Minimum Plate Thickness: 3mm
Compatible Minimum Element: 01005
Counting Time: ≤10s disc
Counting Accuracy: 01005 Reachable 99.8%; 0201 Reachable 99.9% up
Upper (Lower) Feeder (One for each)
Material Size: Diameter 7-13°-15
Material Height: Thickness 8mm~85mm
Speed: 5-10 s per disc
Feed Type: There are two stations in total, each station can store about 50 materials (according to the height of 10m per plate), and two stations are recycled.
Stacker car: Automatic continuous feed to the intelligent point machine, connected to the intelligent point machine front end.
Application:
Rapid counting and inventory management of resistive, capacitive, and IC materials
High-precision chip counting with non-contact methods to prevent damage
Flexible tray compatibility (7-17 inches) for diverse material types
Automatic labeling and material grabbing with high recognition accuracy up to 0.01mm
Support for unmanned loading via Automated Guided Vehicles (AGVs)
Plate induction technology to prevent mislabeling
Efficient detection and counting of single disk or multi-disk materials with feeding options for 1-4 stations
