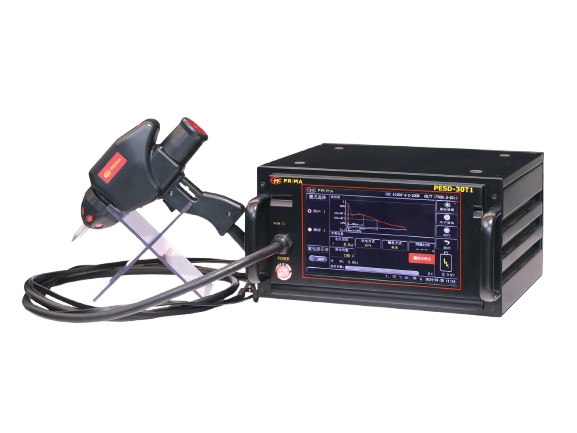

EMC Prima PESD-30T1 ESD Simulator (0.20kV～30.0kV ±5%)

Contact Discharge: 200V～30000V (±5%)

Air Discharge: 200V～30000V (±5%)

Voltage Range: 0.20kV ～30.0kV ±5%

Step Voltage: 0.0kV～10.0kV

Holding Time: ＞5S

Output Polarity: ＋，－，＋/－，－/＋

T&H: Built-in thermometer and humidity meter

Discharge Electrode: Pointed head (contact discharge electrode); Round head (air discharge electrode)

Discharge Mode: Contact discharge, air discharge

RC Module: Discharge capacitance: 150pF; Discharge resistance: 330Ω

Repetition Frequency: Single/0.1/0.2/0.5/1/2/5/10/20Hz

Trigger Mode: Single, manual, automatic trigger

Pulse Count: 1c～60000c

Rise Time: 0.6～1.0ns

- ergonomic design

- 10.1 inch color touch screen operation

- positive and negative polarity arbitrary conversion

- Chinese and English can be switched

- custom, boost and standard mode

- excellent technology, durable

- the highest test voltage can reach 20kV.

- intelligent detection of air discharge failure

- RJ45 and RS232 interface, remote (optional)

- discharge module can be replaced.

- support single continuous 20pps scanning discharge mode.

- built-in temperature and humidity time and real-time high-pressure display

- discharge electrode can be replaced freely.

- IEC61000-6-1

- GR 1089

- EN61326

- GB/T17626.2/EN/IEC61000-4-2

- GB/T19951

- ISO10605

- IEC61340-3-1

- ITU-TK.20

- IEC61326
