To achieve maximum effectiveness, insulation and grounding testing should be integrated into a comprehensive maintenance process.
Warning Signs of Insulation Degradation
When a system operates continuously over a long period, insulation and grounding faults rarely occur abruptly; they are almost always preceded by early warning signals:
System-level indicators: The inverter continuously reports insulation faults, automatically disconnects, or fails to start up in the early morning when air humidity rises.
Physical manifestations: DC cable sheaths develop cracks, brittleness, and sponginess due to UV radiation; aluminum mounting frames show signs of electrical leakage causing mild shocks upon contact; or scorch marks and micro-cracks appear on the surface of the PV modules.
Causes of Insulation Degradation
Fluctuating day-and-night temperatures cause mechanical expansion and contraction, rapidly aging the insulation layer of DC cables. Additionally, high humidity, storms, water accumulation in cable trays, or the intrusion of insects and rodents quickly erode insulation capacity. If the grounding system fails to achieve standard resistance, fault currents or induced lightning surges cannot be safely dissipated, easily destroying the inverter's power circuitry.
Benefits of Periodic Testing
With solar DC voltages reaching up to 1500V, performing periodic measurements according to safety standards (such as IEC 62446) delivers immense value: eliminating the risk of arcing-induced fires and explosions and maximizing the operational lifespan of the entire station infrastructure.
Fluke Solutions for Safe Solar System Operation
Precise Location of Underground Ground Faults
Instead of manually dismantling and inspecting hundreds of meters of strings, engineers utilize the Fluke GFL-1500. This specialized device is capable of detecting and precisely pinpointing the location of ground faults or open circuits in photovoltaic systems up to 1500V. Accurately identifying the fault point right from the combiner box helps shorten troubleshooting time from several days down to just a few hours.
High-Voltage Safety and Continuity Testing

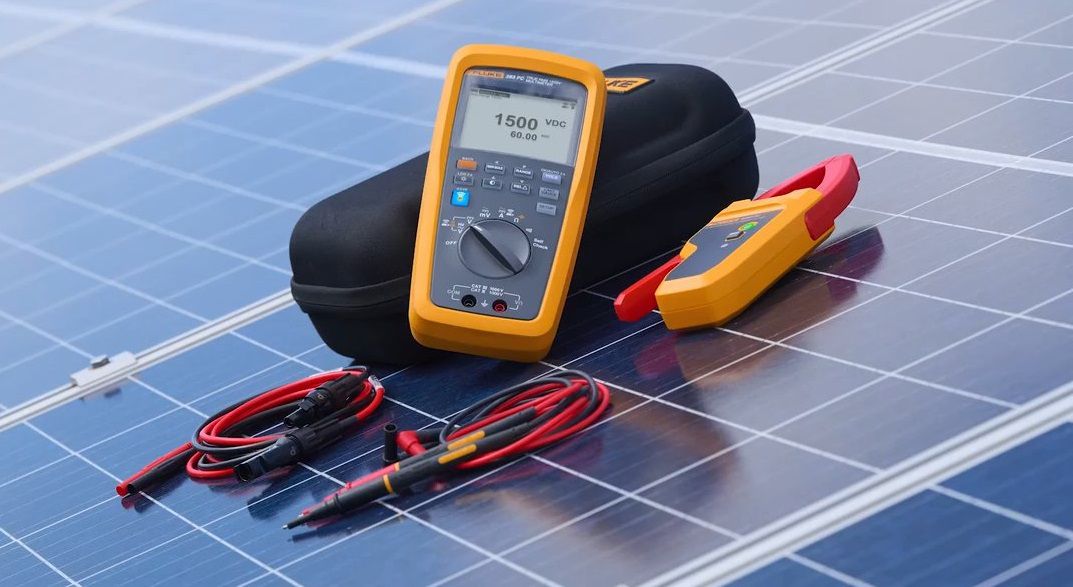

During high DC voltage measurements at combiner boxes or inverter inputs, the Fluke 283FC Digital Multimeter acts as a vital safety safeguard for technicians. Thanks to its precise high-voltage measurement capabilities and integrated wireless data transmission, engineers can monitor parameters from a safe position without direct contact with hazardous live sources.
Monitoring Output Power Stability
Alongside the DC side, testing the grounding system and AC power quality prior to grid tie-in must be performed concurrently. The Fluke 1777 Power Quality Analyzer records all indices regarding harmonics, voltage sags, and frequency fluctuations, ensuring that the power injected into the grid achieves purity and safety compliant with utility standards.
In-Depth Module and String Performance Evaluation
Conventional voltage testing methods cannot detect deeply hidden anomalies such as shading, micro-cracks, degradation over time, or bypass diode failures. The Fluke PVA-1500HE2 is specifically designed for large-scale solar systems, supporting DC voltage ranges up to 1500V and currents up to 30A. The Fluke PVA-1500HE2 enables scanning and plotting of complete I-V (Current-Voltage) and P-V (Power-Voltage) characteristic curves in just seconds right in the field. Integrated with the SolSensor wireless irradiance sensor, the device automatically records solar irradiance, module back-sheet temperature, and tilt angle to reference measured data against Standard Test Conditions (STC). This combination empowers engineers to quickly identify the Maximum Power Point (Pmax), accurately evaluate the fill factor, and isolate underperforming panels, thereby formulating prompt maintenance plans and preventing generation revenue losses for the entire system.
