Evikon ET711 温度センサー (-20~50 °C)

Sensing element: Pt100 class A according to EN60751 (as standard)

                             optional - Pt1000, PTC1000, NTC10

Measuring range: -20...+50 °C

Cable connections: screw terminal block

                                 2- or 3-wire sensor connection

Dimensions: S - H71 × W71 × D27 mm

                     M - H85 × W85 × D37 mm

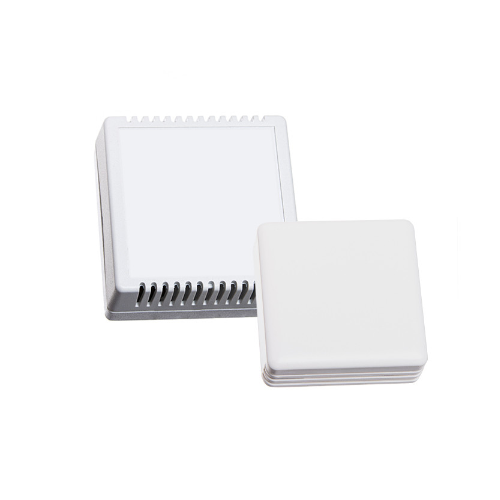

Enclosure: white plastic with ventilation slots

                  wall mount

                  protection class IP20 (standard)

                  size S, M

Operating conditions: -20...+50 °C, less than 95 %RH, without condensation

Output: plain terminal block

             4-20mA analog (for enclosure M only)

             RS485 Modbus RTU protocol digital (for enclosure M only)

Datasheet
