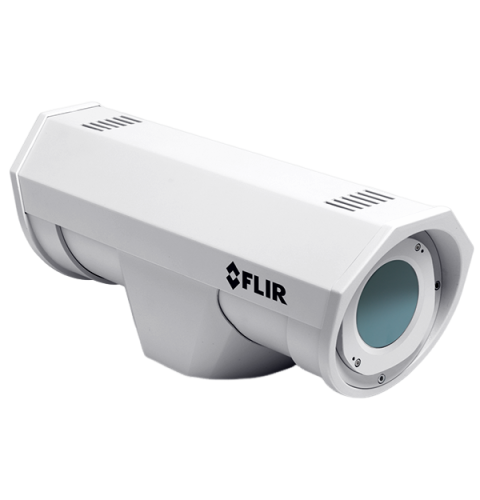

FLIR F-606 ID サーマルセキュリティカメラ (6.2°×5°; 100 mm, f/1.6)

Array Format: 640 × 480

Detector Type: Long-Life, Uncooled VOx Microbolometer

Spectral Range: 7.5 μm - 13.5 μm

Effective Resolution: 307,200

Pixel Pitch: 17 µm

Thermal Frame Rate NTSC: 30 Hz

PAL: 25 Hz / 8.3 Hz

Optical Characteristics

FOV: 6.2°×5°

Focal Length: 100 mm, f/1.6

E-Zoom 4x continuous: E-Zoom

Focus: Athermalized, Focus-Free

Sensitivity:<35 mK @ 25ºC F# 1.0

System Integration

Ethernet: 10/100 Mbps

Control: Input/Output 1× Dry Contact in; 1× Relay Out (rated load 0.09A@ 5VDC)

Network: APIs FLIR SDK, FLIR CGI, ONVIF Profile S

Network

Supported Protocols: IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, NFS, SAMBA, HTTPS

Physical

Weight: 9.55lb (4.4kg)

Dimensions (L, W, H): 18.1” × 5.5” × 6.3” (460 × 140 × 160 mm)

Electrical

Input Voltage: 24 VDC (21-30 VDC), 24 VAC (21-30 VAC)

Power Consumption:

24 VAC:15 VA (max w/o heaters), 51 VA (max w/heaters)

24 VDC:10 W (max w/o heaters), 46 W (max w/heaters)

Environmental

IP Rating (Dust & Water Ingress): IP66

Operating Temperature Range: -40°C to 70°C / -40° F to 158°F cold start

Storage Temperature Range: -55° to 85°C / -67° F to 185° F

Humidity: 0-95% relative

Shock: MIL-STD-810F “Transportation”

Vibe: IEC 60068-2-27

De-Icing / Anti-Icing: MIL-STD-810F, Method 521.1; De-Icing of 3/6mm model dependent

Video

Composite Video: NTSC or PAL

Yes: IP & Analog

Analog Video Output Composite: 1Vp-p (PAL or NTSC), 1 × BNC 75Ω

Video Compression: Two independent channels of H.264 & M-JPEG

Streaming Resolution: QVGA to VGA

Thermal AGC Modes Features: Auto AGC / Sharpness (Digital Detail Enhancement (DDE)) / Sensitivity / Brightness / Contrast

Thermal AGC Region of Interest (ROI): Default, Presets and User definable to insure optimal image quality on subjects of interest

Analytics Management: Web-based confguration and management

Analytics Features: Region Entrance/Intrusion Detection, Crossover/Fence Trespassing, Auto/Manual Depth Setup, Human and Vehicle Rules, Hand-off target to PTZ tracking, Tampering, Rule Dependency

Image Uniformity Optimization: Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
