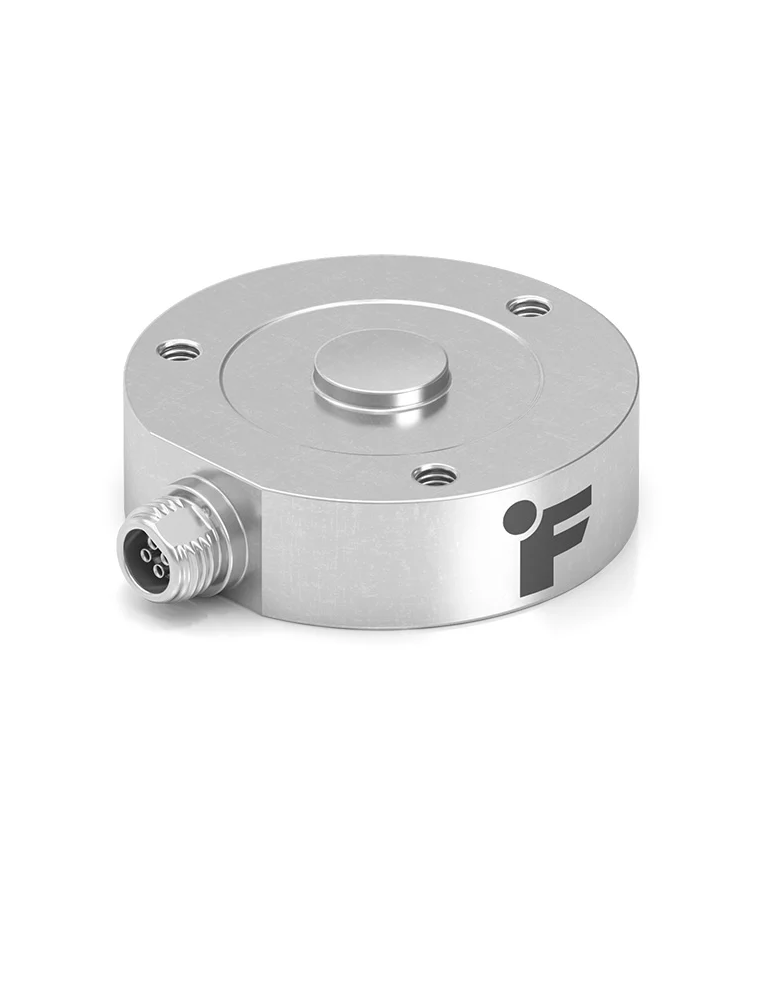

FUTEK LLB400 Load Button Load Cell (2000 lb)

Load (lb): 2000

Load (N): 8896

Nonlinearity (% of RO): ±0.35

Hysteresis (% of RO): ±0.35

Deflection (in): 0.002

Natural Frequency (kHz): 45

ELECTRICAL

Rated Output (RO): 2 mV/V nominal (100 to 2000 lb); 2.5 mV/V nominal (2500 lb)

Excitation (VDC or VAC): 18 V maximum

Bridge Resistance: 700 Ω nominal

Insulation Resistance: ≥ 500 MΩ @ 50 VDC

Connection: 4-position micro receptacle

Wiring/Connector Code: CC19

MECHANICAL

Weight (approximate): 3.7 oz [102 g]

Safe Overload: 150% of RO

Deflection: See Chart 1

Material: 17-4PH stainless steel

IP Rating: IP67

TEMPERATURE

Operating Temperature: –60 to 200 °F [–51 to 93 °C]

Compensated Temperature: 60 to 160 °F [15 to 71 °C]

Temperature Shift Zero: ±0.01% of RO/°F [0.018% of RO/°C]

Temperature Shift Span: ±0.02% of LOAD/°F [0.036% of LOAD/°C]

CALIBRATION

Calibration Test Excitation: 10 VDC

Calibration (standard): 5-point compression

Shunt Calibration Value: 100 kΩ, 87.325 kΩ (2500 lb)
