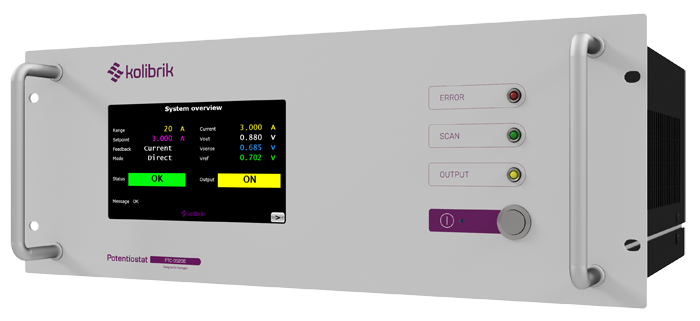

GAMRY PTC-0520E Kolibrik Potentiostats (4 current ranges (20 mA, 200 mA, 2 A, 20 A))

SYSTEM

Potentiostat: Yes

Galvanostat: Yes

Power supply: 110..240V AC / 50..60 Hz

Dimensions: 19“ rack cabinet, 4U height

Cooling: Air

Protection rating: IP20

Electrometer Input voltage range: -10 V +10 V

Compliance / Output voltage: -5 V +5 V

Compliance / Output current: -20 A +20 A

Current Ranges: 4 current ranges (20 mA, 200 mA, 2 A, 20 A)

Sampling: 24-bit ADCs, 1 ksps internal, 50 sps filtered sampling 14-bit ADCs, up to 20 Msps, for EIS measurements

Measurement resolution: 0.001 % of selected range for ≤ 1 ksps sampling

Accuracy: Voltage ≤ 0.1 % of range + 0.1 % of reading;  Current ≤ 0.1 % of range + 0.5 % of reading

Acquisition methods: constant V, I, open circuit ...

EIS frequency: 1 mHz  1 MHz

EIS amplitude: 1.. 1000 mV, up to 10 A for < 1 kHz

Connection: USB 2.0

Software : Software for MS Windows, TCP Server, NI LabVIEW drivers
