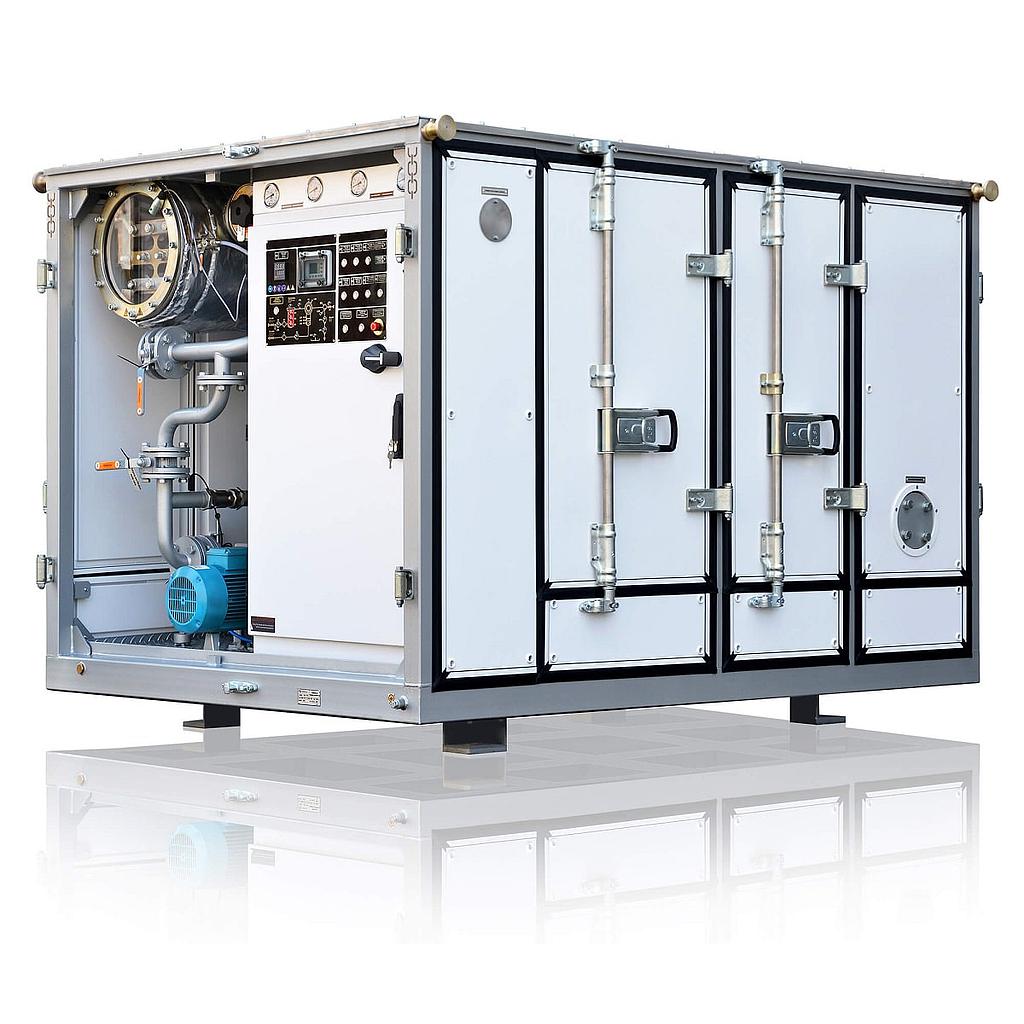

GlobeCore CMM-12A Degassing unit (12 m3/h; 15 m3/h; 230 kW)

Capacity, m3/hour (gpm), max:

– degassing, drying, filtration: 12 (52,8)

– heating and filtration: 15 (66)

* Parameters of treated oil:

– gas content by volume, %, max: 0,1

– moisture content, ppm, max: 5

– ISO 4406 purity rating: -/12/16

Max temperature of oil at outlet in heating mode, ºС (ºF): 90 (194)

Outlet pressure, bar (psi): 1,5 (21,75)

Heater power, kW, max: 200

Max power requirement, kW: 230

Power supply:

– voltage, V: 415

– AC frequency, Hz: Customizable

Dimensions, мм (in), max:

– length: 2240 (88)

– width: 1600 (63)

– height: 1500 (59)

Weight, kg (lbs), max: 2200 (4850)

* Note:

Initial oil parameters:

• gas content by volume:  10.5% or less;

• moisture content by weight: 0,01% (100 ppm) or less;

• temperature: 0 ºС (32 ºF) or above.

The required purity parameters may require several cycles to achieve.
