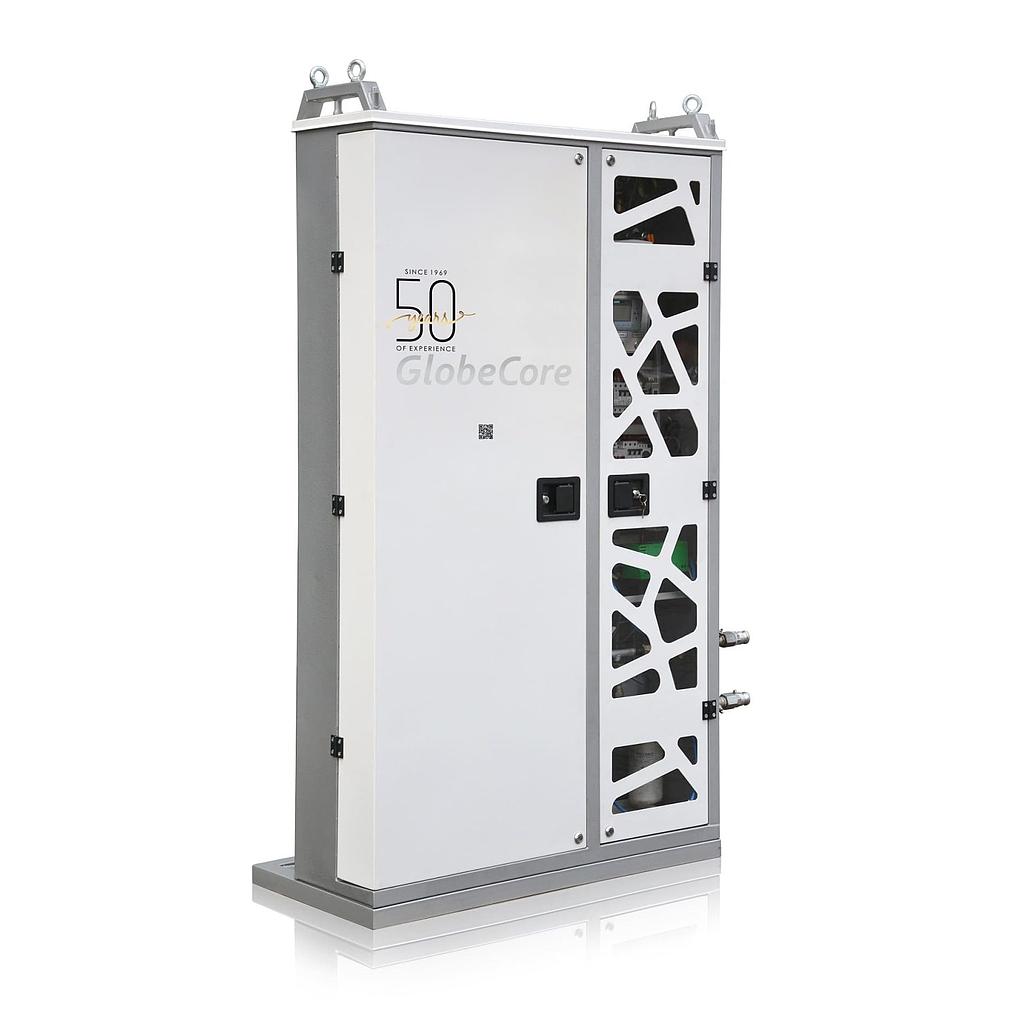

GlobeCore TOR-4 Online Transformer Dry-Out System (30 l/h; 0.2 kW)

Capacity in drying mode, l/hour: 30

Amount of adsorbed water, l: 9

Sorbent load per one column, kg: 21

Output pressure, bar: 2

Output head, m: 20

Max power requirement, kW: 0.2

Power supply:

- Phases: 3p+1N+PE

- Voltage, V: 220

- Frequency, Hz: 60

Connections:

- Oil inlet, Dn: 20

- Oil outlet, Dn: 20

Dimensions, mm, max:

- length/length: 1180

- width/width (frame design): 350/550

- height/height (frame design): 2035/2085

Weight, kg, max: 500
