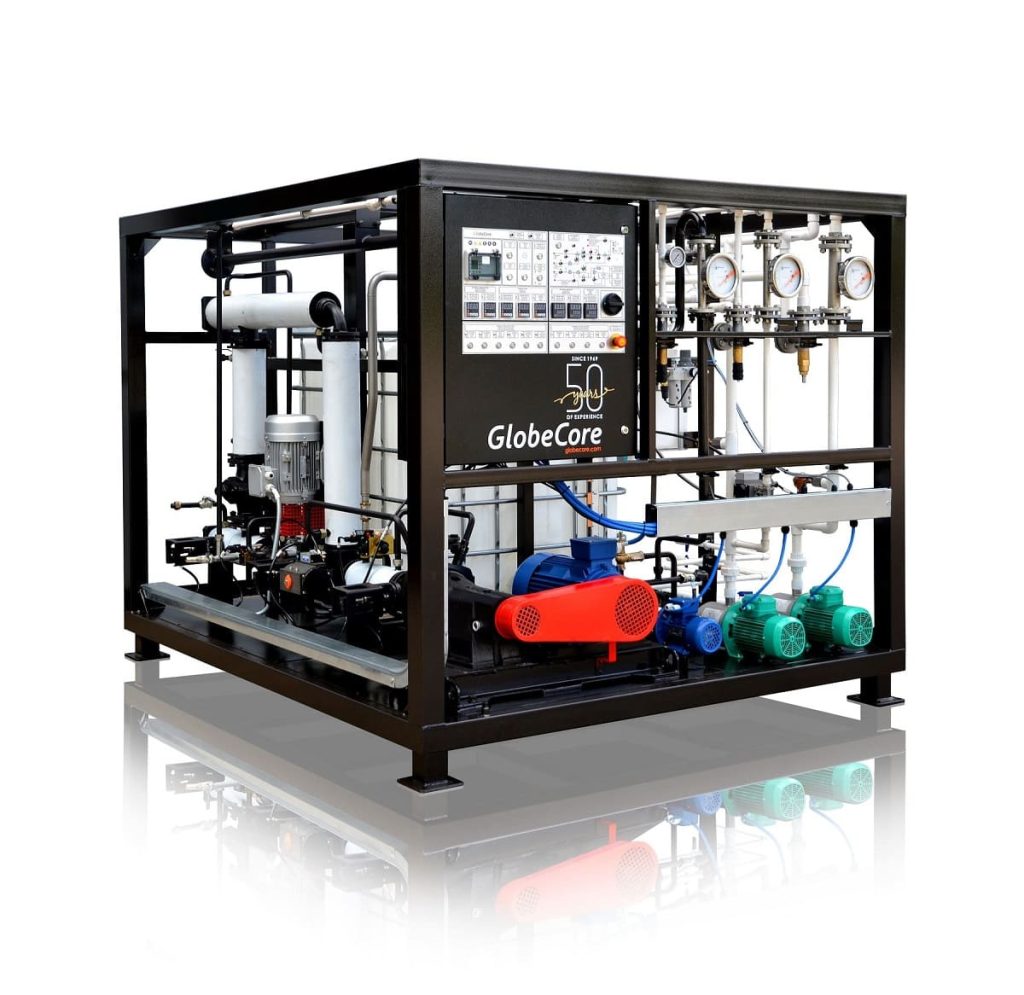

GlobeCore USB-2-2-m3-h Bitumen emulsion unit (2 m3/h; 18 kW)
Maximum production capacity (preparation time included), m3/hour: 2-3
Minimum bitumen consumption, m3/hour: 1.8
Water consumption, m3/hour: 0.6–2.0
Flux consumption, dm3/hour: 0–72
Acid consumption, dm3/hour: 5–20
Emulsifier consumption, dm3/hour: 5–20
Adhesion additive consumption, dm3/h: 1–20
Max bitumen input pressure, Mpa: 0.2
Bitumen to mixer pressure, Mpa: 1.4–1.6
Water phase to mixer pressure, Mpa: 0.2
Bitumen input temperature, °С: 140–160
Water input temperature, °С: 40–60
Max emulsion output head, m: 15
Max nominal power, kW: 18
Power voltage at 50 Hz, V: 380
Compressed air supply, bar: 4–6
Air consumption, dm3/min: 250
Dimensions (L/W/H), mm: 2080/2340/1934
Max weight, kg: 1200
