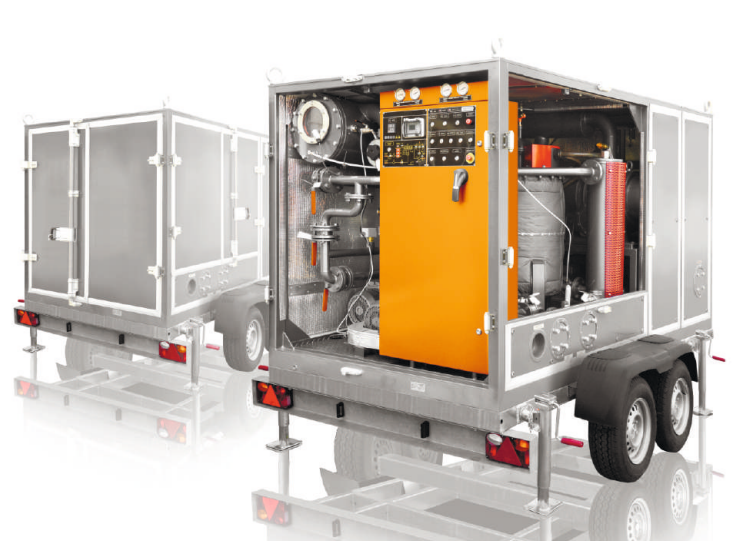

GlobeCore UVM-10 Transformer oil processing unit (Degassing mode: 10 m3/h, Heating and filtration mode: 15 m3/h)

Productivity:

+ in the degassing mode, m3/h (gal/hour): 10 (2642)

+ in the heating and filtration mode, m3/h (gal/hour): 15 (3963)

Oil heater power consumption, kW: 150

Power consumption, kW, max: 200

The power supply parameters: Any options on customer's request

Overall dimensions, max, mm (in):

+ length (w/o trailer / with trailer): 2240 (88)/ 4365 (172)

+ width (w/o trailer / with trailer): 1600 (63)/ 2270 (89)

+ height (w/o trailer / with trailer):  1750 (69)/ 2300 (91)

Weight, kg (pound):

+ w/o trailer: 2350 (5180)

+ with trailer: 3100 (6830)
