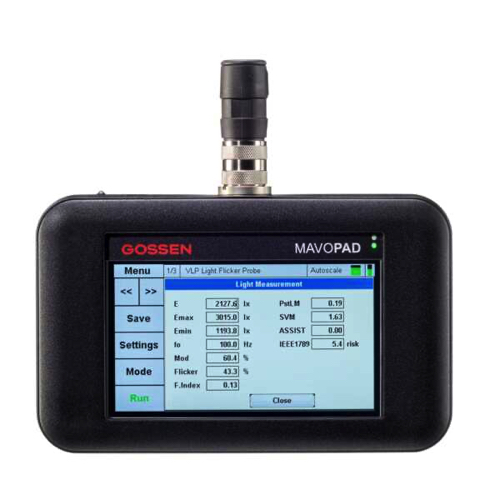

Gossen Metrawatt MAVOPAD Flicker Meter (1 lx~20,000 lx, 50 Hz~400 kHz)

Flicker - time weighted

Dominant frequency, flicker %, flicker index, modulation

Minimum illuminance: > 200 lx

Flicker frequency: 50 Hz ... 400 kHz

Flicker - frequency weighted

PstLM, SVM, ASSIST Mp, IEEE 1789

Minimum illuminance: > 1000 lx

Illuminance

Measuring range: 1 lx ... 20,000 lx, mean, maximum, minimum

Accuracy: < 5%, standard illuminant A at 1000 lx

Spectral sensitivity: 480 nm ... 660 nm

Miscellaneous

Sampling rate: up to 1.6 MHz

Probe connection cable: 0.8 m, Pluggable

Supply: Li-Ion battery

Interface: USB 2.0 with Micro-B socket

Memory: 32 GB

Protection: IP 20

Dimensions: 154 x 96 x 34 mm

Weight: 350 g
