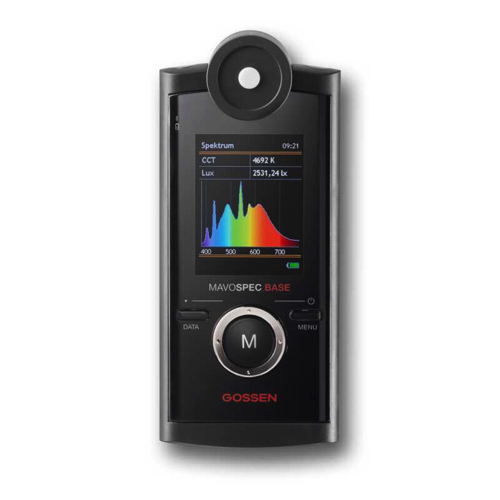

Gossen Metrawatt MAVOSPEC BASE Spectrometer (10 lx~100,000 lx; 380 nm~780 nm)

Measuring functions

Spectrometer for the specialist with LUX, CCT, CRI, PPFD, TLCI, IES TM-30, flicker index / % / frequency, reference mode

Illuminance, measuring range: 10 lx ... 100,000 lx, accuracy: +/- 3%

Irradiance, Luminous Efficacy Ratio

Color temperature

Color temperature difference to Planck's curve

Color rendering index CIE13.3 and IES TM-30-15

Gammut Area Index, peak wavelength

Dominant wavelength according to CIE15, Color purity according to CIE15

Color coordinates according to CIE1931, CIE1960, CIE1976

Television Lighting Consistency Index

PPFD, PPFD_UV, PPFD_Blue, PPFD_Green, PPFD_Red, PPFD_IR

Flicker frequency, Flicker %, Flicker Index

Miscellaneous:

Spectral range: 380 nm ... 780 nm

Supply: Li-ion battery 3.7 V - 890 mAh

Interface: USB 2.0 with USB mini socket

Memory: 4 GB

The MAVOSPEC BASE determines all the parameters required for a comprehensive assessment of modern lighting including illuminance, color temperature, color rendering, color coordinates, flicker, spectral power distribution, peak wavelength and dominant wavelength. With the photosynthetic photon flux density PPFD, plant lighting can also be analyzed and suitable spectra can be selected for optimal growth and flowering. The Television Lighting Consistency Index TLCI assesses the lighting with the eye of the camera and provides important values for color correction.
