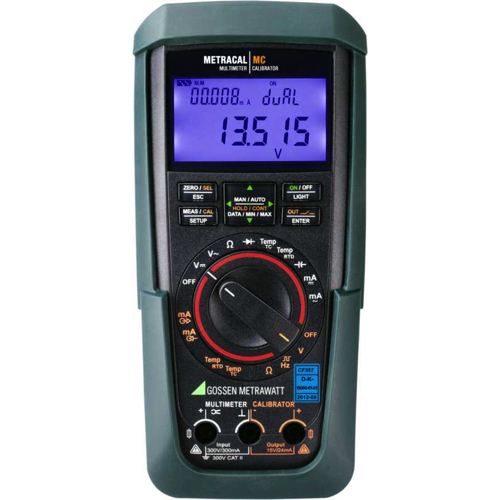

Gossen Metrawatt METRACAL MC Handheld Calibrators (20 kHz; 30 ... 2000 Ω)

Universal calibrator, simulator and multimeter mA / mV ...V / °C (Pt100/1000, Ni100/1000, thermocouples: J, L, T, U, K, E, S, R, B, N) / 30 ... 2000 Ω

Dual mode – simultaneous calibration and measurement (U/I)

Measuring and encoding in absolute terms and as percentage (scaled)

Memory for measurement results: 16 MBit

Frequency generator: 1 Hz to 2 kHz

Ramp and staircase functions

Transmitter simulator (sink: 0 ... 24 mA)

DAkkS calibration certificate included

Rugged, EMC compliant design

Precision multimeter (V, A, Ω, F, Hz, °C/°F): 30,000 (60,000) digits and triple display

TRMS AC measurement: up to 20 kHz

Bidirectional IR data interface

Free device driver for LabView® (National Instruments)

Optional calibration software METRAwin®90-2

Optional measurement data acquisition and analysis software METRAwin®10/METRAHit®

Dimensions: 200 x 87 x 45 mm

Weight: Approx. 430 g with batteries

Protection: IP 65
