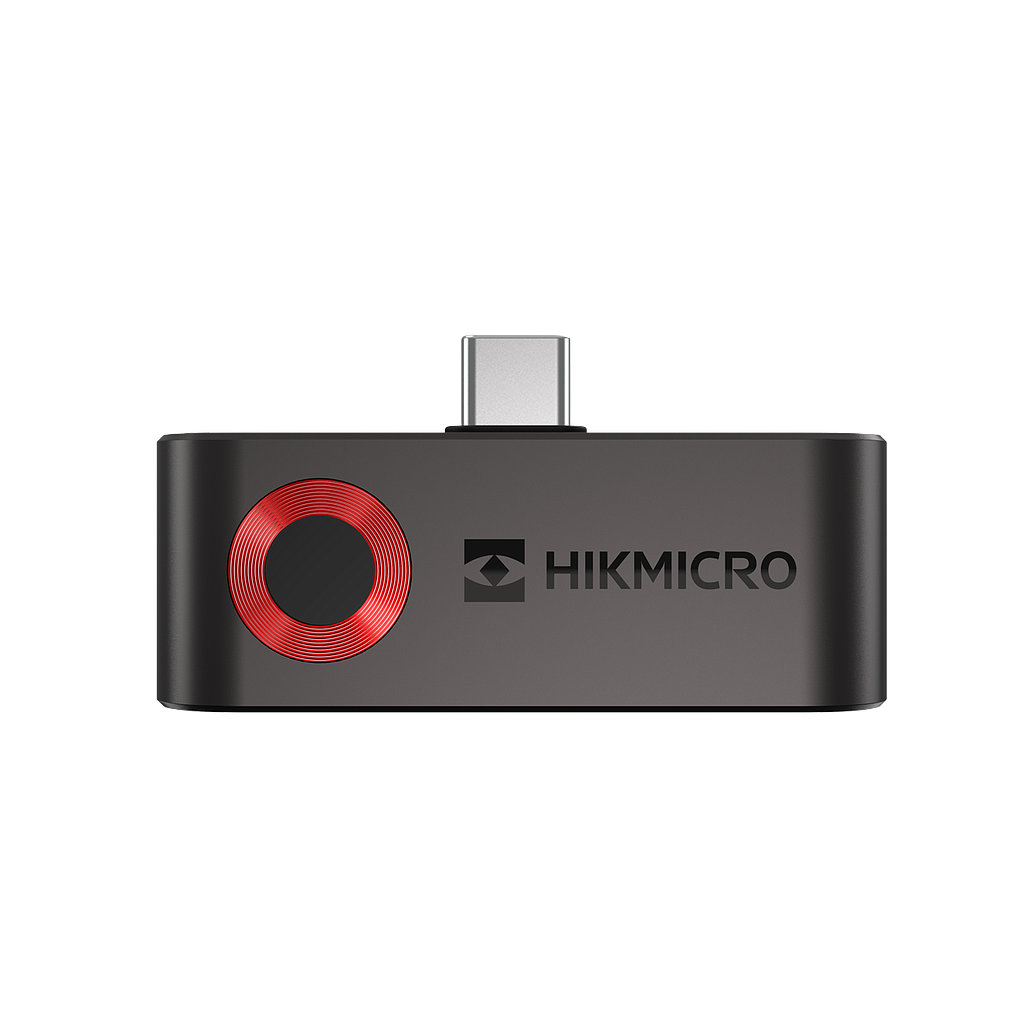

HIKMICRO HM-TJ11-3AMF-Mini1 サーマルイメージャー (-20~350℃; 160x120px; Android, USB Type-C)

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

IR resolution: 160×120 (19 200 pixels)

Measurement range: -20 ~ 350℃

Pixel pitch: 17μm

Spectrum range: 8-14μm

NETD < 40mK (@25°C, F#=1.0)

3mm lens

Thermographic accuracy: ±2℃ / ±2%

Focal length: 3.2 mm

FOV (Field of View): 50°×38° (H× V)

Minimum focus distance: 20cm

Focus: Fixed

Image frequency: 25Hz

Aperture: F1.1

Power: Powered by Smartphone

Phone: Android (USB Type-C Interface)

Working temperature range: 15°C to 35°C (59°F to 95°F)

Storage temperature range: -20°C to 60°C (-4°F to 140°F)

Protection level: IP40

Weight: 26g (0.057lb)

Dimension: 54.1mm×15mm×27.5mm (2.13"×0.59"×1.08")

Power consumption: 300mW

Video format: MP4

Image format: JPEG
