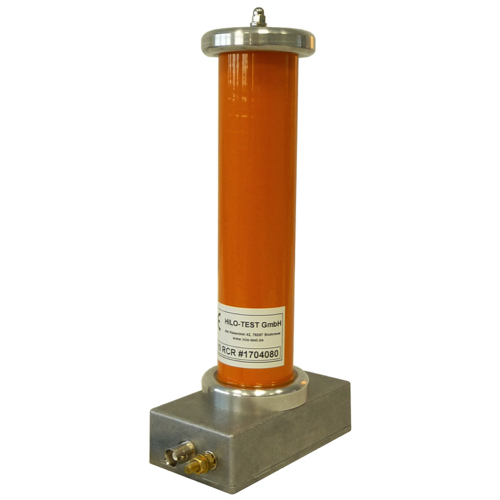

HILO-test HVT 20 RCR Broadband High-Voltage Dividers (22 kVDC; 15 kVAC)

Rated input voltage (DC): 22 kV

Rated input voltage (AC eff.):15 kV

Rated input voltage (Pulse 1.2/50µs): 40 kV

Divider ratio (DC): 2000:1 (± 1%)

HV-resistor: 40 MΩ

HV-capacitor: 82 pF

Rise time: 15 ns

Bandwidth: 23 MHz

Dimensions:

Socket (∅/L x B x H): 112 x 60 x 32 mm

Undercarriage (L x W): -

Wheels / lockable: -

Height: 320 mm

Weight: 2.5 kg

Cable length: 2 m

Environment Conditions

Temperature range: 5 °C - 40 °C

Temperature error: < 0.2 % (from -5 °C to 40 °C)

Relative humidity: Maximum 80% for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C

Operating Altitude: Up to 1000 m above sea level
