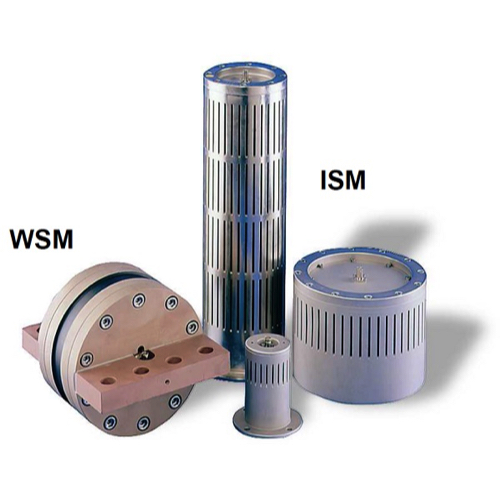

HILO-test ISM 350 Current Viewing Resistors (100 kA/ 360 A, 0.5 mΩ)

Current rating (peak / rms): 100 kA/ 360 A

Nominal resistance*: 0.5 mΩ

Power: 64.8 W

Impulse-load integral: 5.6*10⁵ A²s

Rise-time: 1.8 ns

Bandwidth¹: 200 MHz

Size (Diameter / Length): D (200 / 160 mm)

Weight: 9.0 kg

Notes:

* Nominal resistance at 20°C. Resistance tolerance is ±1%. Tk = ± 50 ppm/K (for 200 mΩ, Tk = ± 100 ppm/K).

The impulse-load integral  ∫i²dt is based on a temperature rise of 100K.

Voltage pickup: BNC

¹ theoretical value

Datasheet
