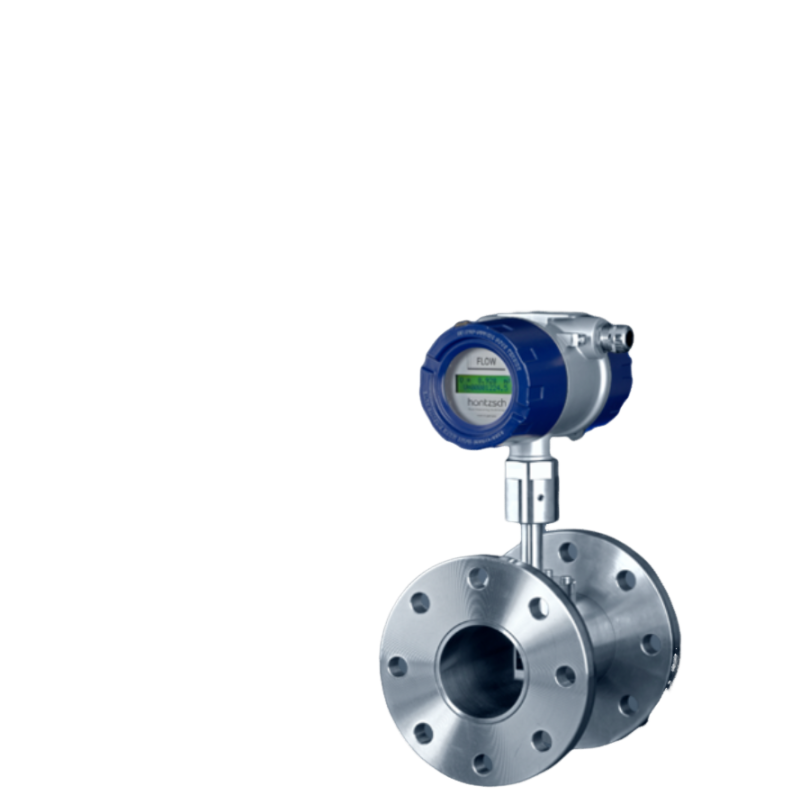

Hoentzsch VA Di 100 渦流センサー (Order code: VA Di 100GE40m/s/p10ZG1Ex-d, 1131 m3/h, stainless steel)

Dimension:

tube inside Ø Di [mm]: 100

flange outside Ø D [mm]: 220

flange thickness b [mm]: 20

hole circle Ø k [mm]: 180

hole Ø d [mm]: 18

no. of holes:  8

sensor length [mm]: 200

sensor height H [mm]: 318

Medium: gases

Materials in contact with the medium: stainless steel 1.4404, 1.4571, 1.4581, ceramics

Measuring range:

flow rate [m³/h]:  11.0 ... 1131

average flow velocity [m/s]: 0.4 ... 40

Max. working pressure:  up to 10 bar / 1 MPa overpressure

For more details, see datasheet.

Datasheet

Drawing
