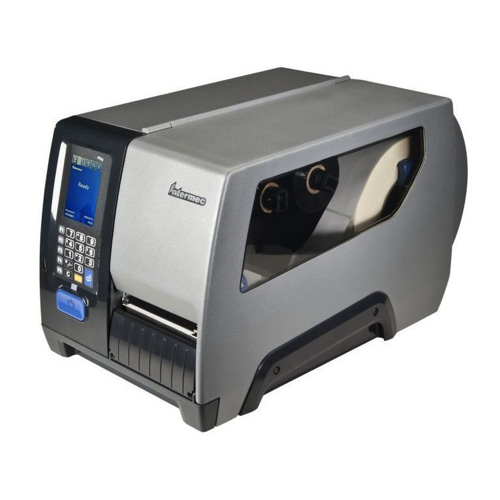

Honeywell PM43 Mid-Range Industrial Printers (300 dpi, 106 mm, 100–300 mm/s)

L x H x W: 483 mm x 295 mm x 284 mm (19.0 in x 11.6 in x 11.2 in)

Weight: 15.82 kg (34.88 lb)

Max. Width:  106 mm (4.17 in)

PRINT SPEED: 100–300 mm/s (4–12 ips)

PRINT RESOLUTION: 11.8 dots/mm

MEDIA:

Type: Labels and Tags, Linerless and Linered media

Max./Min. Width: 114/19 mm (4.5/0.75 in)

Thickness: 3 mil to 10.4 mil

Configuration: Roll-fed or fanfold

Sensing: Gap, notch, black mark, continuous

Label Roll Max. Diameter: 152 mm (6 in) for long door models; 213 mm (8.38 in) for all other models

Label Roll Core: 38–76 mm (1.5–3 in)

Type: Ribbons

Roll Max. Diameter: 80 mm (3.15 in), approx. 450 m (1,476 ft)

INTERFACES

Standard:

Ethernet 10/100 Mbps

RS-232, up to 115.2 KB/s

Supported Serial Protocols:

Fingerprint/Direct Protocol: XON/ XOFF, ENQ/ACK, DSR/DTR, RTS/CTS

IPL: XON/XOFF, Honeywell Std. Protocol

USB 2.0

USB Host (X1 on PM23c/PM43c,X2 on PM43)

MEMORY

Standard: 128 MB Flash memory, 128 MB

SDRAM, Multi-GB USB memory device (FAT16/FAT32)

USER INTERFACE: Color Touch UI, Icon UI

POWER SUPPLY

AC Voltage: 100 to 240V AC, 45 to 65 Hz

PFC Regulation: IEC320/C14

Power Consumption: Standby 9W; Peak 300W

OPERATING ENVIRONMENT

Ambient Operating Temperature: +5°C to +40°C (+41°F to +104°F)

Storage Temperature: -20°C to +70°C (-4°F to +152°F)

Humidity: 20 to 80% non-condensing

Datasheet
