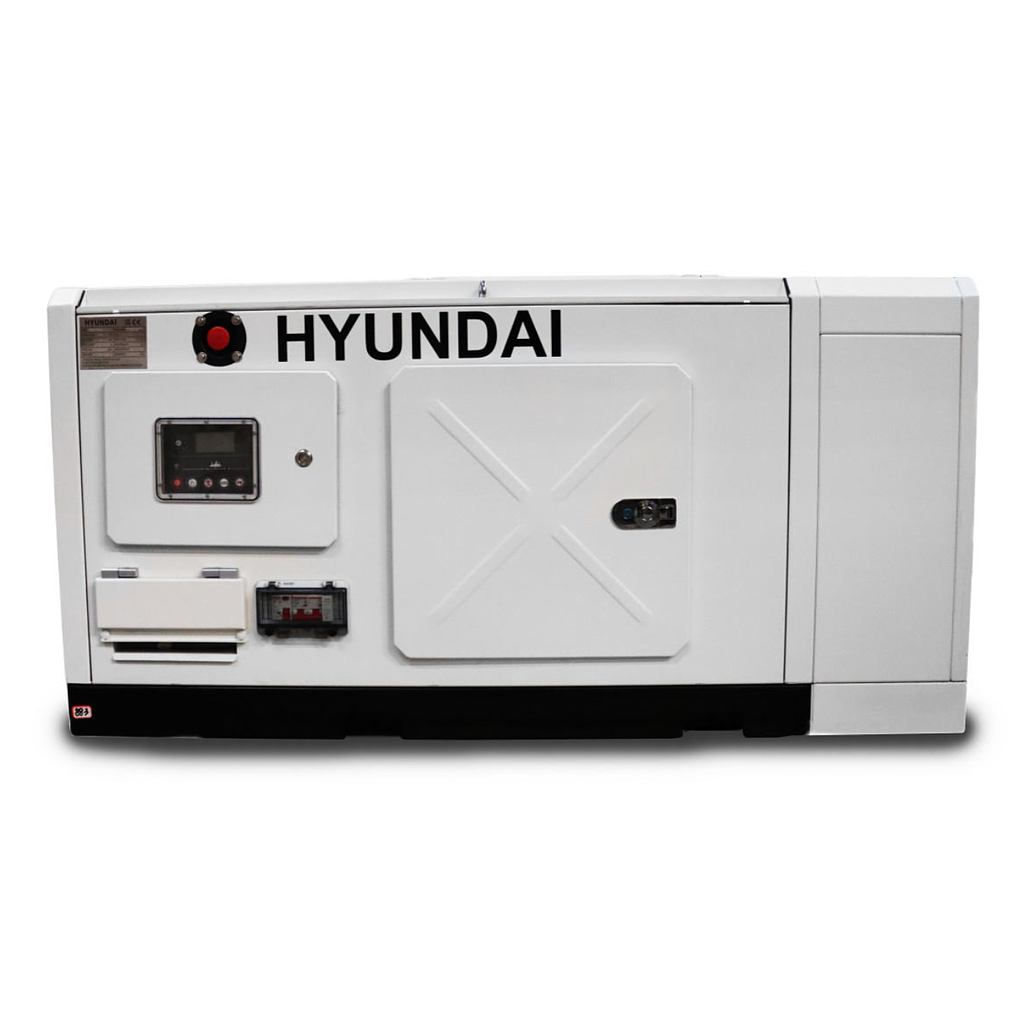

Hyundai DHY18COM-1 Compact Diesel Generator (17kW / 20.4kVA, 230V, Single Phase)

Rated/Prime kVA: 20.4

Rated/Prime kW: 17

Max/Standby kVA: 19

Max/Standby kW: 15

Phase: Single

Voltage: 230

Connection Method(s): Busbar

Rated Speed (RPM): 1500

Frequency (Hz): 50

Max/Continuous Current (Amps): 69.6

Power Factor (Cosφ): 1

Fuel/Power Source: Diesel

Fuel Tank (Litres): 40

Runtime (Hours) @ 100% Load: 10

Noise Level @ 1m 75% load (dB): 79.5

Noise Level @ 7m 75% load (dB): 70

Hyundai Diesel Engine Model: 4DW91-29D

Power Output (kw): 17

Displacement (CC): 1809

No. of Cylinders: 4

Displacement (Litres): 1.809

Recommended Oil Type: SAE 15W40

Oil Capacity (Litres): 8

Oil Filter Part No.: 1012015AB01-0000

Aspiration: Natural

Fuel Regulation/Governor System: Electronic

Fuel Consumption (100% Load) [Litres]: 4.94

Fuel Filter Part No.: 1117010-B01-0000B

Cooling Water

Alternator Model: GP184E

Breakers: Delixi 125A

Alternator Type: Brushless

Voltage Regulation: AVR

Air Filter Part No.: DHP-0029-04

Net Weight (kg): 520

Gross Weight (kg): 597

Dimensions L x W x H (mm): 1600 x 740 x 825

Battery (Ah): 1x12V-60Ah

ATS / MTS Compatible: Yes

Control Panel: Deep Sea Electronics DSE6120 MKIII
