Benefits
The measuring window in a compact size of 90 x 36 mm is perfect to use in limited areas of the plant
You avoid disturbing supporting arms in the intensive mixer
In case of abrasion the probe recalibrates
Fast and easy to build in even in screw conveyors and mobile truck mixers
Thanks to the special ceramics the mixer probe is extremely robust and long-lasting
A simple use directly in the wipers is possible. You avoid problematic radio connections and awkward battery changes
You get precise measuring values by the representative measuring field and the disc-shaped radar scan
The measuring behavior is optimized for proportions of color and fine material in the mixture
Applications
The SONO-MIX Mini mixer probe is perfect e.g. to be built in:
Intensive mixers
Special mixing units
Containers
Screw conveyors
Material funnels
Conveyor belts
As special version LD or Xtrem it is also suitable for general applications in the process technology

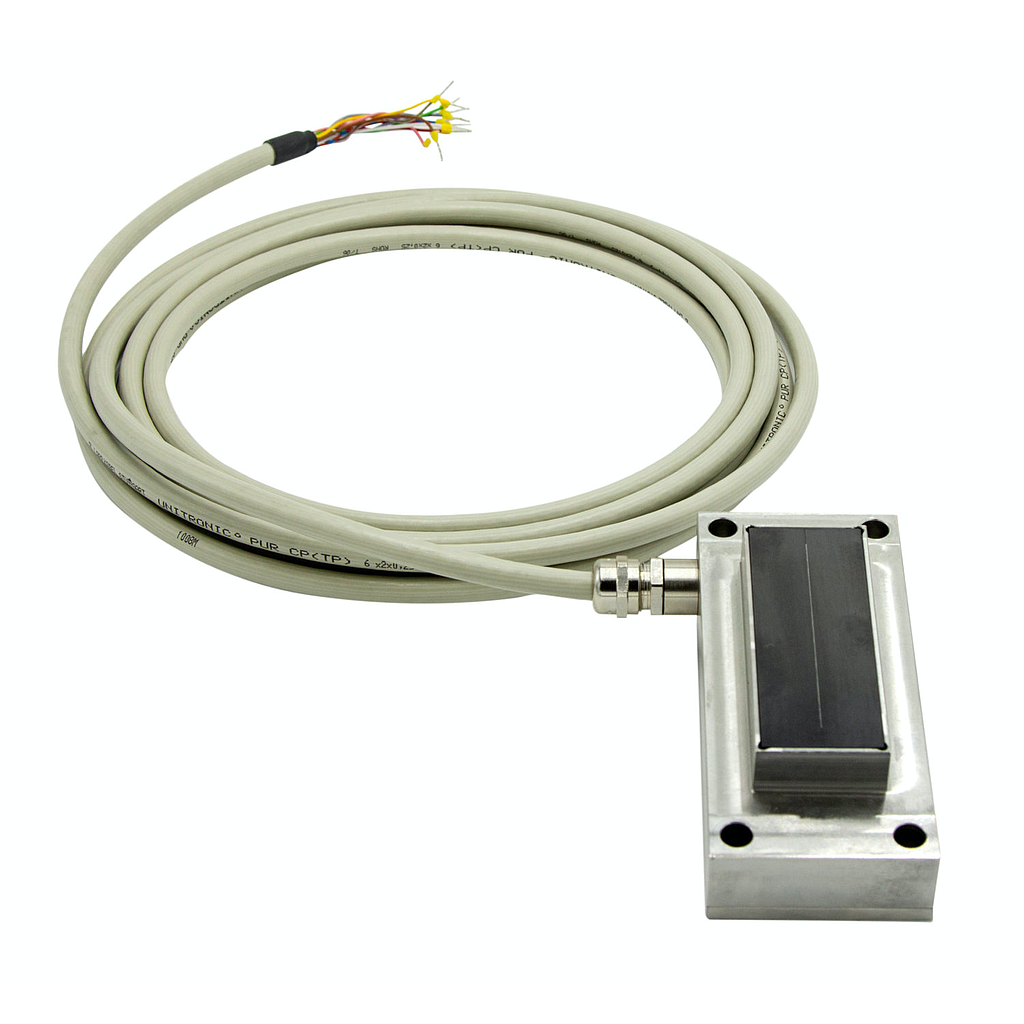

The stainless steel housing and the ceramic window support SONO-MIX Mini to be a wear-resistant mixer probe for daily use. Integrated in the housing is a TRIME TDR transducer. It creates a high frequency TDR impulse with 1 GHz, runs along waveguides and builds up an electromagnetic field around the waveguides and the probe within the material. The duration of the impulse measures with a solution of one picosecond to determine moisture and conductivity.
