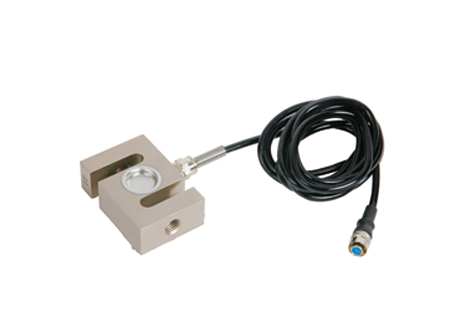

INSIZE 8650-2K S-Type tensile/compression sensors (2000N/200kg)

SPECIFICATION

Maximum range: 2000N/200kg

A: M12x1.75mm

B: 19mm

C: 50.8mm

D: 76.2mm

Output sensitivity: 2.0±10%mV/V

Zero output: ±1%F.S.

Non-Linearity: ±0.03%F.S.

Hysteresis: ±0.03%F.S.

Repeatability: ±0.03%F.S.

Creep (30 minutes): ±0.03%F.S.

Temperature sensitivity drift: ±0.03%F.S./10°C

Zero temperature drift: ±0.05%F.S./10°C

Response frequency:10kHz

Material: alloy steel

Electrical impedance: 350Ω

Insulation impedance: ≥5000MQ/100VDC

Operating voltage: 5-15V

Working temperature: -20~80°C

Safety overload: 150%

Extreme overload: 200%

Cable specification: Ø5mm: ≤1T, 2m; >1T, 5m

Extreme cable pulling force: 10kg

■ Characteristic: Bi-directional tension and compression, compact structure high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel

■ Application fields: Universal material testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and other tension and pressure testing instruments as well as automation equipment
