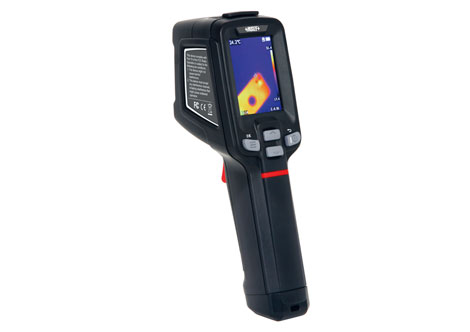

INSIZE 9132-T400 Infrared thermal imaging camera (basic type) (50°x38°, 2.28mm/F1.13)

IR image

IR resolution: 120×90@17μm

detector type: VOx/7.5~14μm

frame rate: 25Hz/9Hz

thermal sensitivity/NETD: 60mk

focal length: 2.28mm/F1.13

field of view (FOV): 50°x38°

spatial resolution (IFOV): 7.6mrad

focus: focus-free

Visible camera

visible camera resolution: 320×240, focus-free

flashlight: yes

Image display

display: 2.4 inch IPS technology TFT display

display resolution: 320x240

image model: IR/visible/picture-in-picture

color palettes: 6: white hot, iron red, hot iron, arctic, rainbow 1, rainbow 2

Temperature measurement

temperature range: -20~150°C, 100~400°C (auto switching)

accuracy: ±2°C or ±3%, whichever is greater (target temp ≥0°C, ambient temp is 15~30°C)

measurement area: center spot

measurement spot: 3 (incl. max & min temp)

auto max & min spot tracking: yes

alarm: full screen max & min spot alarm

Image storage

storage media: TF card (16G)

IR image format: full radiometric (JPG) (120 x 90)

visible image: yes, 320x240

Connections & communications

USB: TYPE-C, TF card slot

tripod interface: yes

mobile APP: yes

PC IR analysis software battery type: yes

Power system

battery type: rechargeable li ion battery

battery operation time: >5 hours

charging time: internal charge, ≤2.5 hours

Emvironmental parameters

operation temperature: -10~50°C

storage temperature: -40~70°C

protection: IP54, 2-meter drop test

certification: CE/ROHS/FCC

dimension (LxWxH): 194×61.5×76mm

weight: 350g

Standard Delivery

Main unit: 1pc

Power supply adapter: 1pc

TYPE-C cable: 1pc

16G TF card: 1pc

■ IR/visible/laser indicator

■ Trigger button for photo taking

■ 2-meter drop test, IP54 protection
