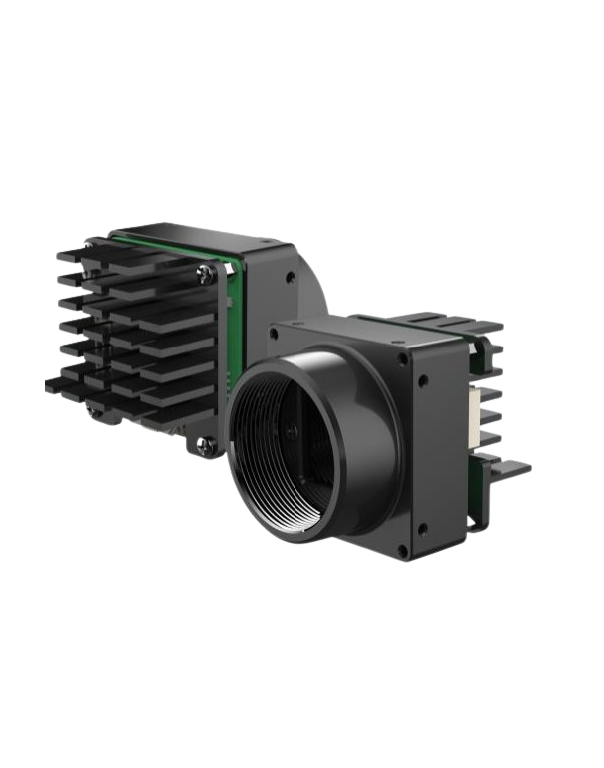

iRAYPLE AB7A20CU000E Industrial Vision Camera

Basic

Sensor: IMX304

Image Sensor: 1.1" CMOS

Shutter: Global

Resolution: 4096 × 3000

Frame Rate: 23.4 fps

Bit Depth: 12 bit

Mono/Color: Color

Pixel Size: 3.45 μm × 3.45 μm


Pixel: 12 MP

S/N Ratio: >38 dB

Dynamic Range: >70 dB

Image Format: Mono8/10/10Packed

Binning: Supported

ROI: Supported

X Flip: Supported

Y Flip: Supported

Gain: 1–32

Gamma: Range from 0 to 4, support LUT

Exposure Time: 16 μs–1 s

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Supported

Performance

User Setting: Supports two sets of user-defined configurations

Image Buffer: 64 MB

Port

Port: USB 3.0

GPIO Interface: 5-core white plug interface: 1 optocoupler-isolated input, 1 optocoupler-isolated output, and 1 configurable input/output without optocoupler isolation

Lens Mount: C-mount

Power

Power Supply: 5.0 V/900 mA, powered through the USB 3.0 interface (compliant with USB 3.0 interface specifications) or +5.0 V/1 A DC auxiliary power supply through the auxiliary communication interface

Power Consumption: ≈3.2 W

Structure

Product Dimensions: 35 mm × 35 mm × 31 mm (not including lens)

Net Weight: 50 g

Environment

Storage Temperature: -30°C to +80°C

Operating Temperature: -30°C to +50°C
