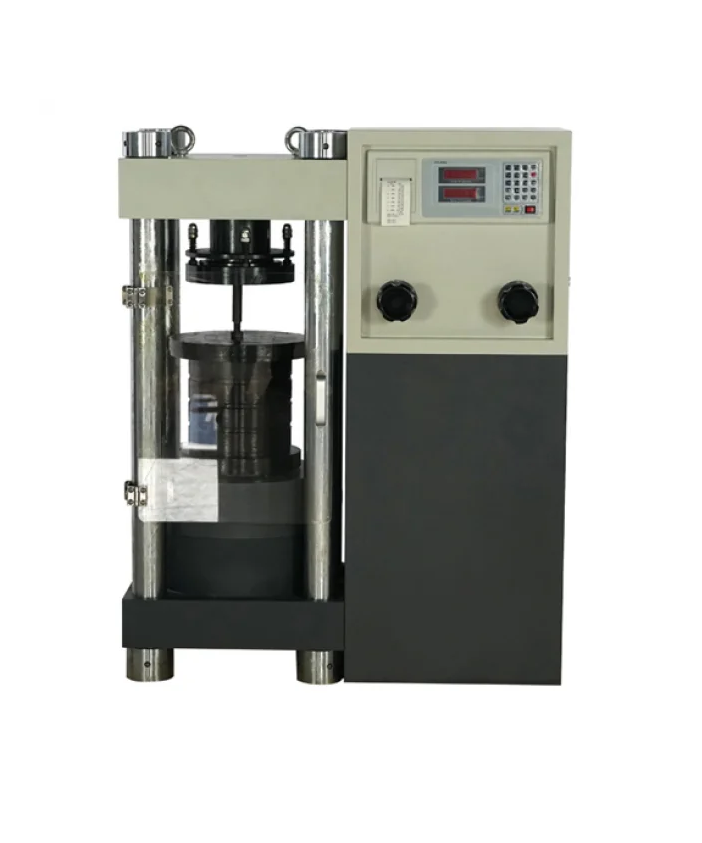

IWINTESTING DYE2000 Digital Compression Testing Machine (2,000kN)

Name: Pad-Type Digital Display Compression Testing Machine

Maximum Test Force (kN): 2,000

Test Accuracy: Level 1

Space Adjustment Method: Pad adjustment

Piston Stroke (mm): 80

Sensor Type: Oil pressure

Maximum Spacing Between Two Pressure Platens (mm): 350

Upper Platen Size (mm): Φ225

Lower Platen Size (mm): Φ295

Motor Power (kW): 0.75

Mainframe Dimensions (mm): 900 × 400 × 1,250

Machine Weight (kg): 920

PRODUCT DETAILS

The series of testing machines are powered by hydraulic pressure.

Manual control technology is used to test the mechanical properties of rock, mortar, brick, concrete and other building materials. It shows the loading force, loading speed, etc. Test data are automatically processed, stored and printed.
