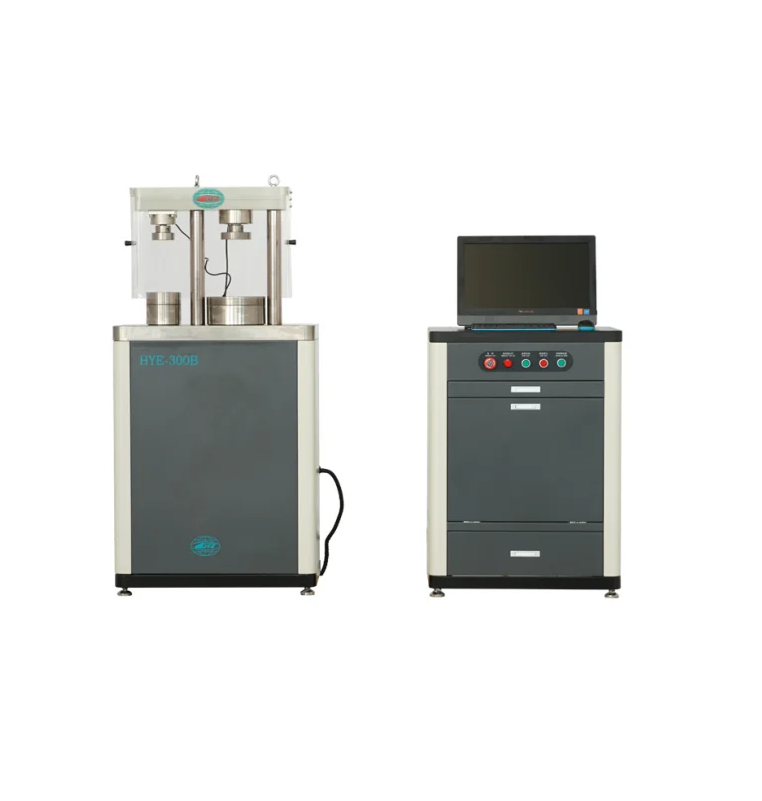

IWINTESTING HYE300B Microcomputer servo Compression Testing Machine (300kN)

Maximum Compressive / Flexural Test Force (kN): 300 / 10

Test Accuracy: 0.5 / 1 level

Compressive Piston Stroke (mm): 80

Flexural Piston Stroke (mm): 60

Compressive Test Space (mm): 180

Flexural Test Space (mm): 180

Fixed Upper Platen Size (mm): Φ108 / Φ60

Ball-Type Upper Platen Size (mm): Φ168

Lower Platen Size (mm): Φ207

Motor Power (kW): 0.75

Mainframe Dimensions (mm): 560 × 400 × 1,340

Machine Weight (kg): 520

Control Cabinet Dimensions (mm): 540 × 500 × 820

Features

Using 300KN and 10KN high precision load cells.

Use special anti-pressure and anti-folding fixtures for cement.

Adopt a plexiglass protective cover with novel appearance.
