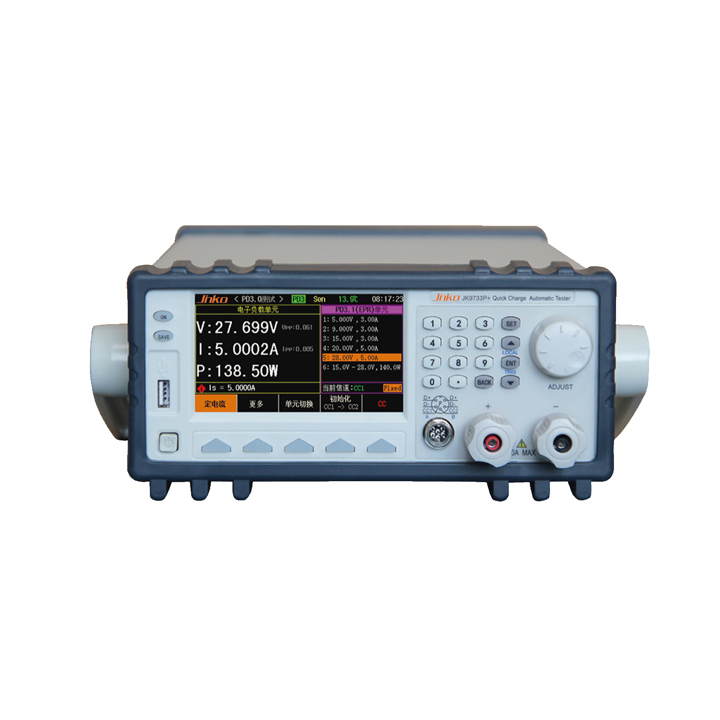

JINKO JK9722P Quick Charge Automatic Tester (150W, 0-60V, 0.1mA - 6A)

Rating

Input Power: 150W

Input Voltage: 0-60V

Input Current: 0.1mA - 6A

Load Accuracy:

Measuring Range 0-15Vm, Precision ±(0.05% + 0.03% FS), Resolution: 0.1mV

Measuring Range 15V-150V, Precision ±(0.05% + 0.03% FS), Resolution: 1mV

Measuring Range 0-3A, Precision ±(0.05% + 0.03% FS), Resolution: 0.01mA

Measuring Range 3-30A, Precision ±(0.05% + 0.03% FS), Resolution: 0.1mA

Fast Charging Protocol Part

D+D- Voltage: BC1.2/APPLE 2.4A

PD Protocol: PD2.0 / PD3.0 / PPS

PD Protocol: NO

QC Protocol: QC2.0 / QC3.0 / QC4+

MTK Protocol: PE1.1 / PE2.0

Samsung: AFC

Huawei: FCP/SCP

OPPO: NO

VIVO: NO

Spreadtrum: NO

UFCS: NO

Functions

CC Line: CC1/CC2 Automatic Turnover

D+D-: NO

E-marker: NO

Ripple Test: Ripple

Other

Outline Dimensions: 215mm × 88mm × 350mm

Power Supply: 198-242VAC, 99V-121VAC, 47.5-63Hz

Performance characteristics

►Built-in various fast charging protocol detection and deception:PD, QC,HUAWEI, OPPO, VIVO, SAMSUNG,MTK, etc.

►Support CC line front and back test, PD packet comparison.

►Support D+/D- double-sided A/B test, built-in E-marker chip, realize the front and back side test of CC line in charger 5A mode(only CH97x3P+).

►500KHz synchronous sampling, adjustable filtering speed, 10uA, 0.1mV stable resolution output.

►Voltage/current ripple (Vpp/lpp), peak value (Vp+/lp+), valley value(Vp-/lp-) measurement.

►50KHz dynamic load mode (DYNA) and peak valley measurement.

►SCPI protocol, convenient for program-controlled load and protocol.

►4.3-inch TFT high-definition color screen display, Chinese and English operation interface optional

►U disk software upgrade function, always keep the latest version.

►USB data storage function, convenient for data recording.

►Standard Handler and electrical isolation RS232 interface, convenient for signal output and data communication.
