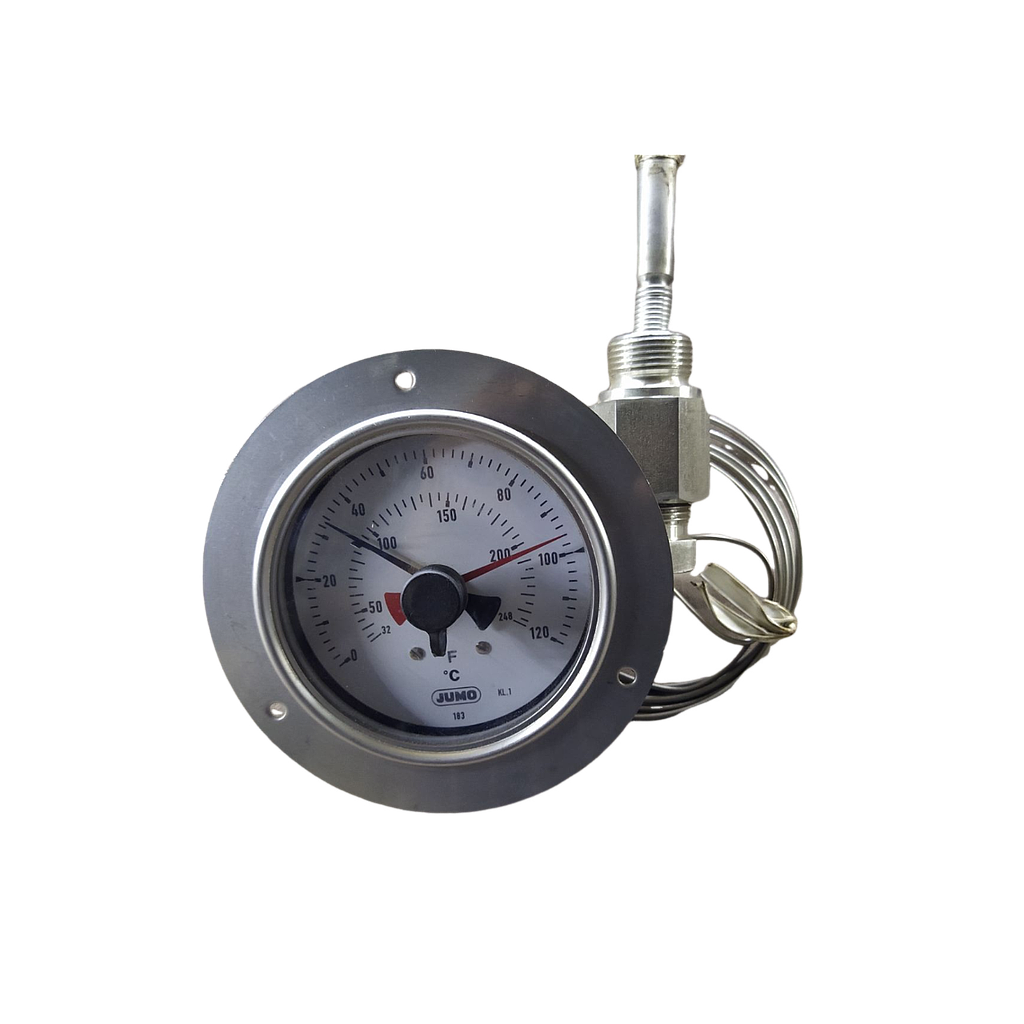

Jumo 608225 Mechanical dial thermometer (0 ~ +120 °C)

Order code:  608225/2010-818-04-2000-750-8-000-26-100/000

Basic type extension: Design type: 20; case size: ø 100 mm

Display range (AB): 0 to +120°C

Capillary type (FL): FL04 Stainless steel capillary (1.4571), ø 2.2 mm

Capillary length: 2000 mm

Process connection (PC): F01, Temperature probe with stepped support tube

Diameter of process connection (PC): ø 08 mm

Thread type of process connection (PC): Without thread (for TF 01, TF 05 and TF 11)

Material of process connection (PC): Stainless steel (1.4571)

Insertion length, process connection (PC)1 (dimension "EL" or "S"): 100 mm

Extra codes (TZ): Without extra code

Dial thermometers are universal devices used for temperature measurement and monitoring.
