Jumo AMTHFf-133 Surface-mounted thermostats (0 ~ +100°C)

Order code: 603051/0133-2-025-25-2000-40-10-00-00-000-00-6/248

Basic type extension (function): AMTHF.-133 Temperature controller 3-pin

Design: AMTHF f with capillary

Control / limit value ranges: 0 to +100 °C

Hysteresis: 2.5%

Capillary length (specifications in mm): 2000 mm

Capillary material: Cu (Copper)

Process connection: plain cylindrical probe (only for AM.f)

Thread of process connection: without thread (process connection "10")

Material of process connection: only with process connection "10"

Fitting length "S“ (immersion tube length): AMTHFf without sheath

Diameter "d" (probe diameter): 6 mm

Extra codes: Wall bracket

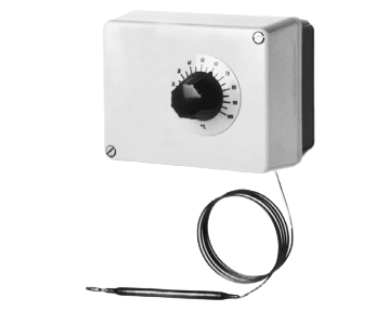

Image may be a representation. See Datasheet for product details.

The devices of AMTHF series are available with 2, 3, or 4 switching steps as temperature controllers (TR) and temperature monitors (TW). The sequence contact gap of the individual switching steps in Kelvin is adjusted in a fixed manner according to customer requirements per default.
