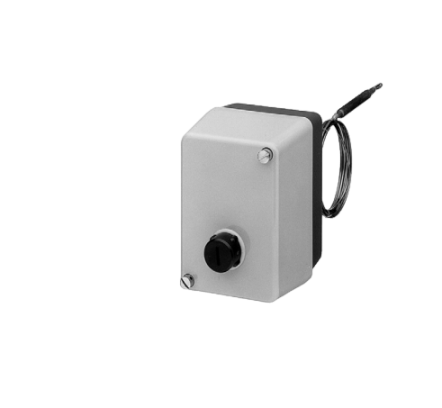

Jumo ATH-70 Surface-mounted single thermostats (20 ~ 150 °C)

Order code: 603021/70-1-043-00-0-00-20-13-20-100-8-6/574

Basic type extensions: ATH-70 Safety temperature limiter (STB)

Design: Rigid thermowell

Control range: 20 to 150 °C

Switching differential: None

Capillary length: None

Capillary material: None

Process connection: Screw-in sleeve

Process connection thread: G 1/2"

Process connection material: CrNi

Insertion length: 100 mm

Immersion tube diameter: 8 mm

Probe diameter: 6 mm

Extra code: Microswitch with changeover contact, restart lock (only for STB)

The devices of the ATH series are available as temperature controllers (TR), temperature limiters (TB), temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB sets the system being monitored to a safe operating status.
