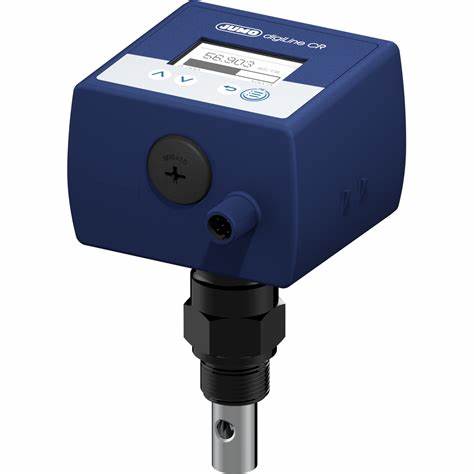

Jumo digiLine CR HT10 Head transmitter with conductive two-electrode conductivity sensor type EC (-50 ~ +250°C)

Order code: 202763/10-10-8-01-0010-1005-104-85-26

Basic type extension: Digital operation, plastic housing (JUMO digiLine)

Display: With display

Version: Standard with default settings

Language: German

Cell constant: 0.1 1/cm

Measuring insert: 1× Pt1000 in two-wire circuit

Process connection: Screw connection G 1/2

Process connection material: Plastic

Electrode material: CrNi 1.4571

JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. System integration can now also take place via an IO-Link interface. The sensor is firmly connected to the head transmitter.
