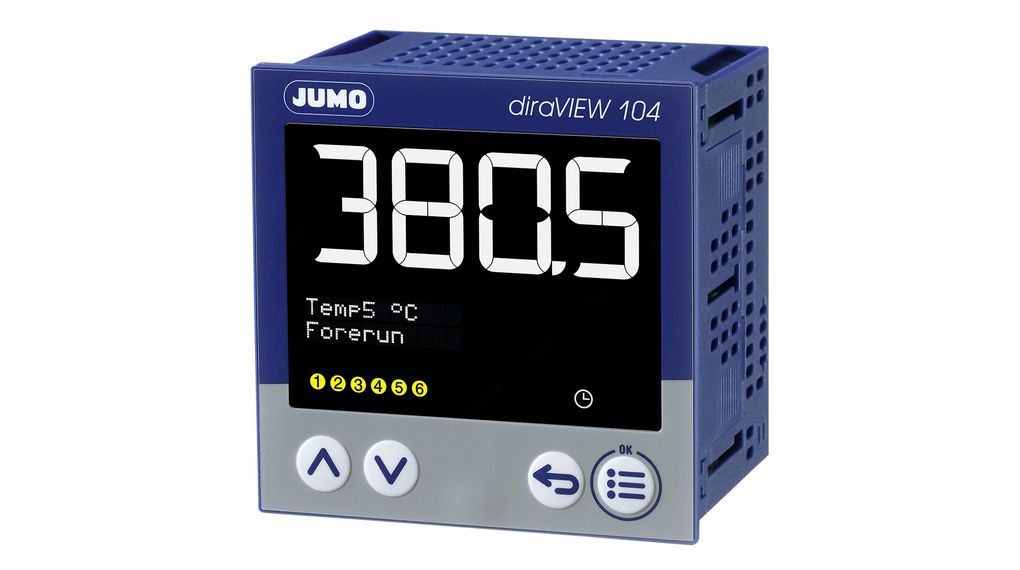

Jumo diraVIEW 104 Digital indicator (110 ~ 240 VAC, 96× 96mm, Part No.: 00694788)

Order code: 701514/8-0000-23/000

Analog input

- Thermocouples

- RTD temperature probe

- Resistance transmitter and resistor/potentiometer

- Voltage, current (standard signals)

Dimensions: 96 mm × 96 mm

1 analog input, 2 digital inputs (digital input 1, alternative to logic output), 2 relays (N/O contact), 1 logic output 0/14 V (alternative to digital input 1)incl. timer, min/max value display, hold function, taring function

Version: Standard with default settings

Voltage supply: AC 110 to 240 V +10/-15 %, 48 to 63 Hz

Extra codes:  Without extra code

Devices that can be used universally in various DIN formats to display process variables. The basic version includes a min/max value function, a hold function, a taring function, limit value monitoring functions, digital control signals, timer functions, and a service counter.
