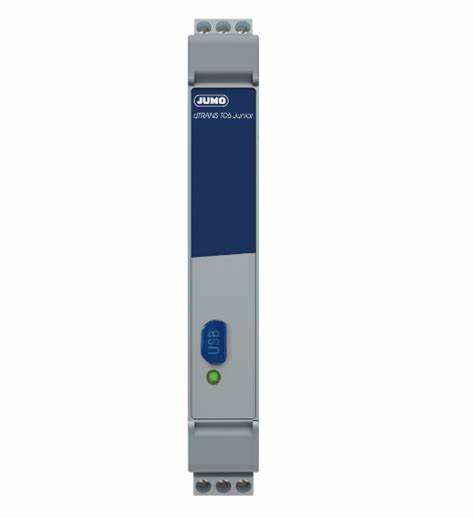

Jumo dTRANS T06 Junior Multifunctional four-wire transmitter in mounting rail case (RTD: -200 ~ +850°C, TC: -270 ~ +2500°C)

Order code: 707070/8-29

Measuring range:

  RTD temperature probe: -200 to +850 °C

  Thermocouples: -270 to +2500 °C

Version: Standard with default settings (Pt100 in 3-wire circuit, 0 to 100°C, 4 to 20 mA)

Voltage supply: DC 24 V, +10/-15 % (the device may only be connected to SELV or PELV electrical circuits)

The JUMO dTRANS T06 Junior multifunction four-wire transmitter is the solution for a wide range of applications in plant engineering due to its galvanic isolation and customer-specific linearization. This entry-level model has a width of only 17.5 mm so that it takes up little space in a control cabinet.
