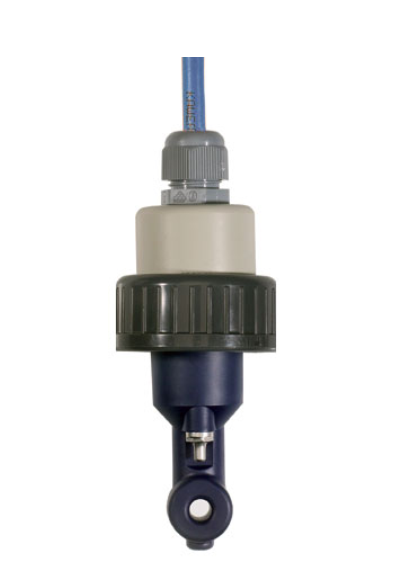

Jumo ecoLine Ci Inductive conductivity (0 ~ 2000mS/cm, Part No.: 00550665)

Order code: 202943/10-607-0000-21-10/000

Conductivity meas. range: 0 ... 1000 µS/cm to 0 ... 2000 mS/cm (depending on connected transmitter)

Basic type extension: PP sensor body, external temperature sensor (standard)

Process connection: Taper socket with union nut DN 50 DIN 11851 (dairy pipe fitting)

Immersion length (EL): without

Electrical connection: Fixed cable with M12 cable socket

Length of fixed cable: 10 m (standard)

Extra codes: none

The sensor acquires the electrolytic conductivity of a process liquid.
