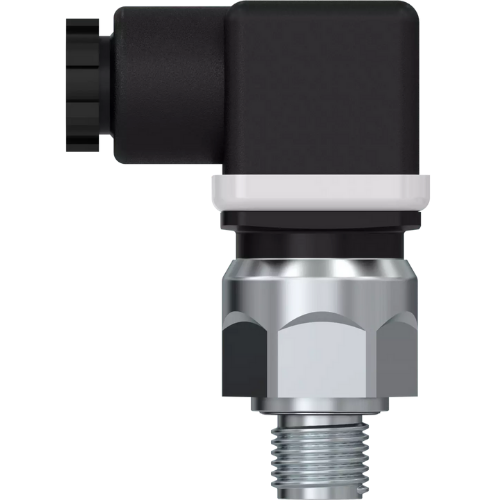

Jumo MIDAS C12 CA Pressure transmitter − Compressed Air (0 ~ 16 bar, Part No.: 00772671)

Order code:  401014/0-460-405-521-44-601-60/000

Basic type extension: Standard

Input: 0 to 16 bar relative pressure (standard)

Output: 4 to 20 mA, 2-wire

Process connection: G 1/4" DIN 3852-11

Process connection material: Al (aluminum) (standard)

Seal material: FPM

Electrical connection: Plug connection DIN EN 175301-803, form A

Extra codes: None

The JUMO MIDAS C12 CA is designed as a pressure transmitter especially for requirements in the field of compressor pressure measurement.
