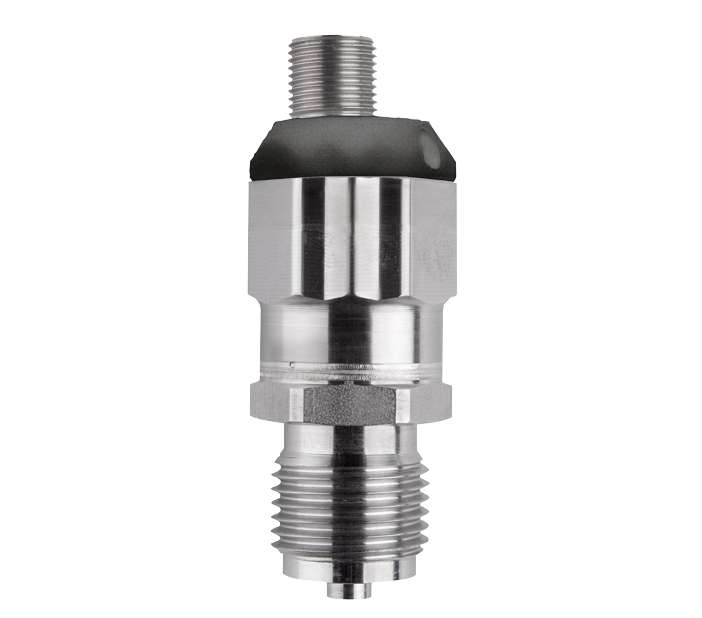

Jumo MIDAS S05 pressure transmitter (0 ~16 bar)

Order code: 401010/000-460-412-504-20-36/591

Input: 0 to 16 bar relative pressure

Output: DC 0.5 to 4.5 V, three-wire

Process connection: G 1/2 according to DIN EN 837

Process connection material: CrNi (stainless steel)

Electrical connection: Round plug M12 × 1

Extra codes: Choke in the pressure channel

This pressure transmitter acquires the relative and absolute pressure. The measuring system is fully welded and can be used for all media. The silicon sensor is resistant to overloading even in the lowest measuring ranges. It is mainly used in mechanical and plant engineering and is also suitable for hydrogen applications in electrolyzers, synthesis plants, and mobile fuel cells.
