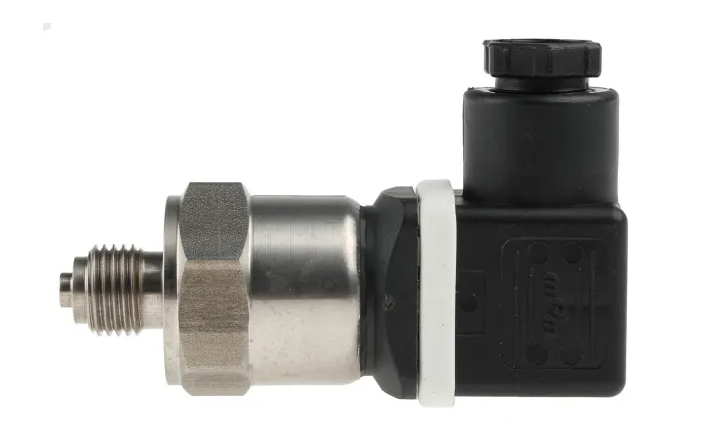

Jumo MIDAS Pressure transmitter (0 ~ 16 bar relative pressure)

Order code: 401001/000-460-412-502-20-601-36/591

Input: 0 to 16 bar relative pressure

Output: 0.5 to 4.5 V, three-wire

Process connection: G 1/4" according to DIN EN 837

Process connection material: CrNi (stainless steel)

Seal: FPM (standard)

Electrical connection: M12 plug connector

Extra code: Choke in the pressure channel

This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal.
