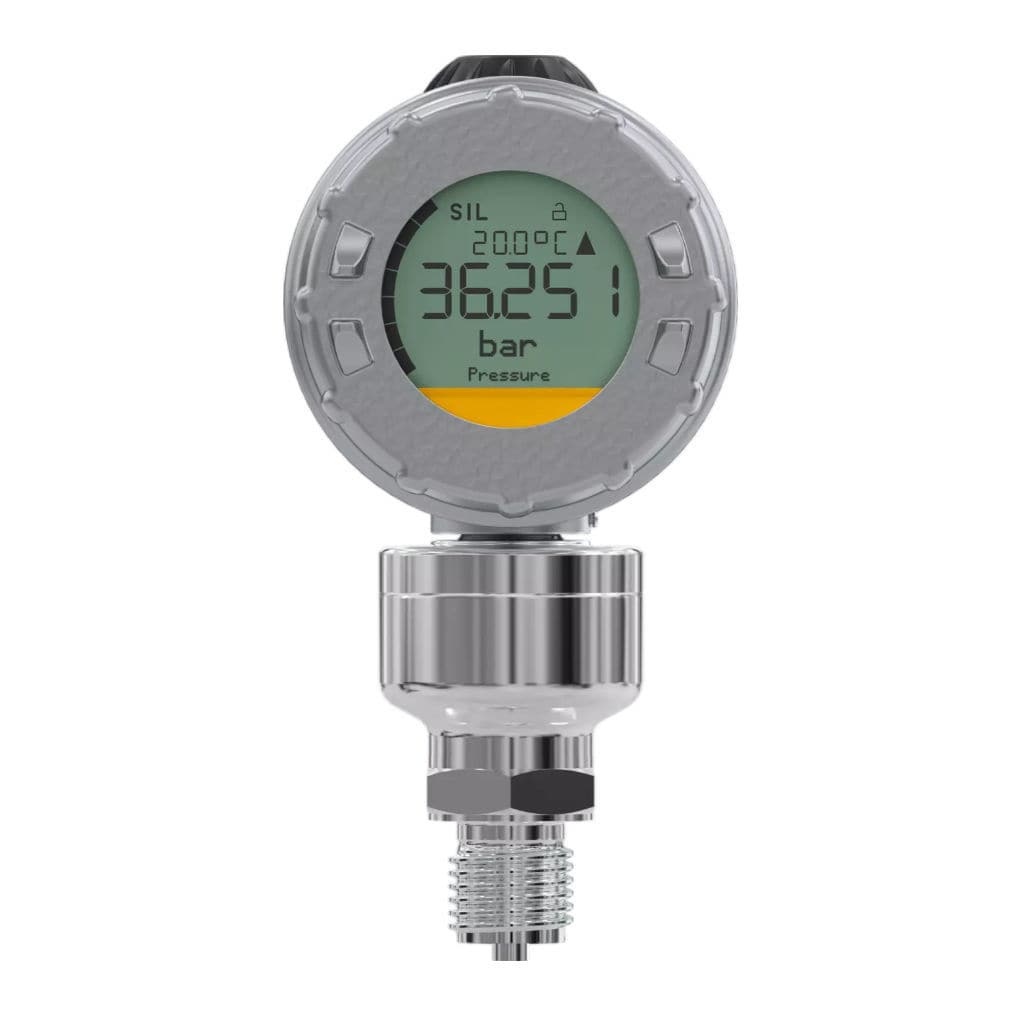

Jumo SIRAS P21 AR Process pressure transmitter with SIL/PL (-600 ~ +600 mbar relative pressure)

Order code: 403028/000-0-1-36-20-1-1-450-410-504-1-20-01/000

Basic type extension: None

Explosion protection: None

Housing: Short, stainless steel, with M12 connection

Electrical connection: Round plug M12 × 1

Lid material: CrNi (stainless steel)

Display: With display (LCD)

Operation: With rotary knob

Input – nominal measuring range: -600 to +600 mbar relative pressure

Output: 4 to 20 mA, two-wire with HART® protocol

Process connection: G 1/2 according to DIN EN 837

Medium temperature: -40 to 85 °C

Process connection material: CrNi (stainless steel)

Measuring system filling medium: Silicon oil

Extra codes: Without extra code

The device is for measuring the system pressure of gases and liquids without solids content.
