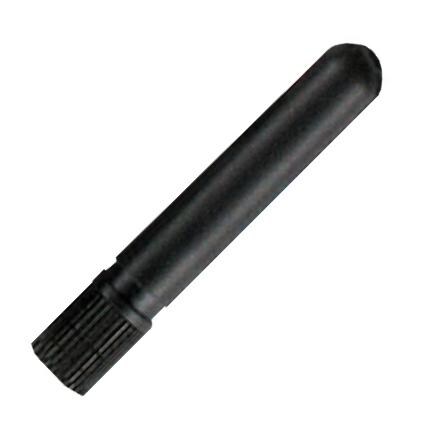

Linx Technologies - TE Connectivity ANT-2.4-CW-RH-SMA パッシブアンテナ SMA 縮小高さ 1/4波長 ホイップ 2.4GHz

Gain: - 0.9 dBi

VSWR: 2

Style: Stubby

Length: 18.6 mm

Diameter: 7.8 mm

Bandwidth: 80 MHz

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: Bluetooth, WiFi, Zigbee, Thread

Unit Weight: 4.542 g

Polarization: Linear

REACH - SVHC: Details

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Helical

Ground Plane Size: 102 mm x 102 mm

Maximum Frequency: 2.49 GHz

Minimum Frequency: 2.39 GHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
