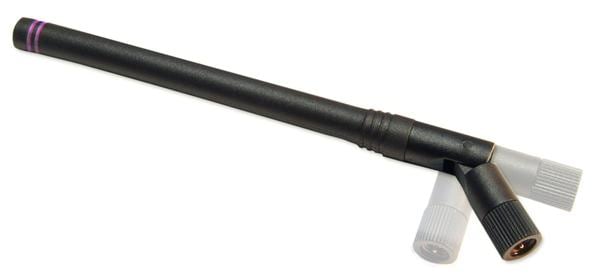

Linx Technologies - TE Connectivity ANT-2.4-OC-LG-RPS パッシブアンテナ 2.4GHz 2.2dBi オープンコイルホイップ TIL/SWIV

Gain: 4.0 dBi

VSWR: 2

Style: Tilt/Swivel

Length: 193.5 mm

Diameter: 10 mm

Bandwidth: 160 MHz

Impedance: 50 Ohms

Wavelength: 1/2 Wave

Application: Bluetooth, WiFi, Zigbee, Thread

Unit Weight: 16 g

Polarization: Linear

Mounting Style: Panel Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Whip

Ground Plane Size: 102 mm x 102 mm

Maximum Frequency: 2.55 GHz

Minimum Frequency: 2.39 GHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
