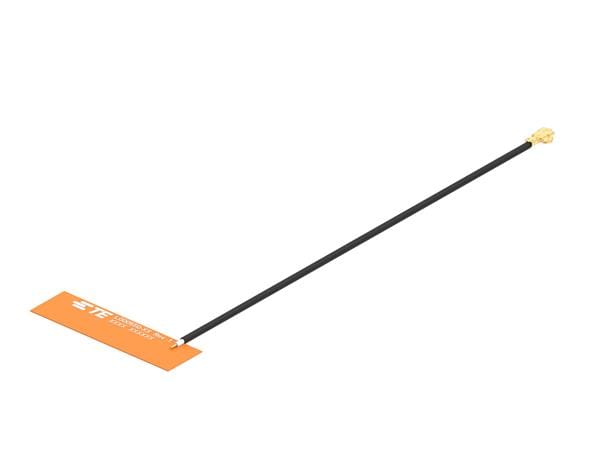

Linx Technologies - TE Connectivity L000550-06 ISMアンテナFPC ANT、HDP、150mm、MHF4、LPWAN 915MHz

Gain: 1.3 dBi

VSWR: 2:1

Style: Flexible

Width: 9.2 mm

Height: 2 mm

Length: 35 mm

Frequency: 902 MHz to 928 MHz

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Cable Length: 150 mm

Polarization: Linear

Power Rating: 10 W

Mounting Style: Adhesive Mount

Frequency Range: 902 MHz to 928 MHz

Number of Bands: 1 Band

Mechanical Style: Rectangular

Maximum Frequency: 928 MHz

Minimum Frequency: 902 MHz

Termination Style: Connector

Antenna Connector Type: MHF4L-TYPE PLUG

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
