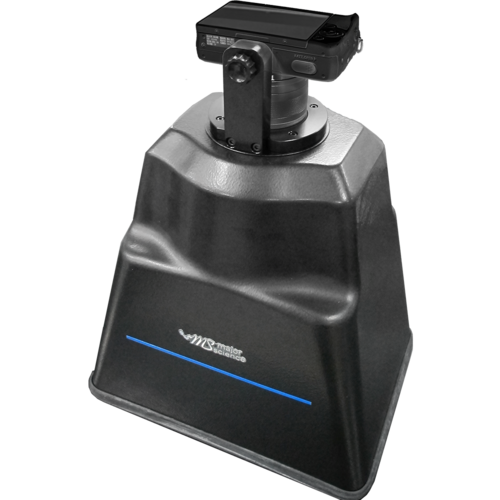

Major Science MUV-IMG-CA SmartView Simple Imager System (f/3.5-6.3, 22.3 x 14.9mm)

Camera Type: 24.1MP digital camera, Wi-Fi function

Effective Pixels: Approx. 24.1 megapixels (Total Pixels Approx. 25.8 megapixels)

Sensor: 22.3 x 14.9mm CMOS sensor

Max. Aperture f/3.5-6.3 (IS STM Lens)

Shutter Speed: 1/4000 - 30sec. (available range varies by shooting mode)

Storage Media: SD memory card, Wi-Fi to PC, Smartphone or Tablet

Computer Interface: Hi Speed USB (Micro), HDMI(Micro), WiFi connection

Video Out : Full HD / HD / MP4 / 4K

Image Resolution: (3:2)6000x4000

Lens 35mm film equivalent to 1.6x the focal length

File Format: Designed rule for Camera File system 2.0

Data Type: JPEG, RAW(CR3 14 bit); RAW+JPEG, simultaneous recording possible

Darkroom

Dimension (WxLxH): Approx. 9.3"x12.5"x16.5" (236x317x420mm)

Material: Acrylonitrile Butadiene Styrene (ABS)

Weight: Approx. 3.1lbs. (1.4Kg)

Camera Adapter Material: Aluminum

Major Science offers the SmartView Simple Imager System for your UV or blue light Transilluminator. This unit is designed extremely light in weight

and compact in size.

For any lab with limited budget and lab space, the SmartView Simple Imager System is definitely the choice of selection. It is compatible with most transilluminators on the market. (for any maximum viewing size less than 260x210mm)

The digital camera model gives an impressive resolution of 24.1 megapixels, and provides you a PC-free operation environment with high mobility.
